4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins

Application : Audio & Video

Rated Current : 25A

Model Number : SW4SM-2Z-Y

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male

Shape : Round

Type : Loudspeaker

Industrial electronics : accessories

MOQ : 10 pieces

Price : $0.64 / piece

Contact Now

Products Description
4Pin Loudspeaker chassis -engineering plastics material
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Model：SWM4S-2ZY
☑Precise keyway for secure mating
☑Metal insert in locking area
☑Glass reinforced materials make it extremely robust and dependable
☑Accurate twist lock latching system ☑Airtight design - optimized for speaker applications
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
1.Product parameters
Connection Type
Speaker
Gender
Male
2.Electrical parameters
Contact resistance
＜2mΩ
Dielectric strength
2.8kVdc
Insulation resistance
> 1.0GΩ (initial)
Rated current per contact
25A
Rated voltage
250 V ac
3.Mechanical parameters
Service life
＞5000 mating cycles
Chassis shape
Circular
Layout
four thru holes
Locking device
Latch lock
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Ag
Shell
Polyamide (PA 6 30 % GR)
Flame-retardant grade
94 V-0
Temperature range
-30℃to +80℃

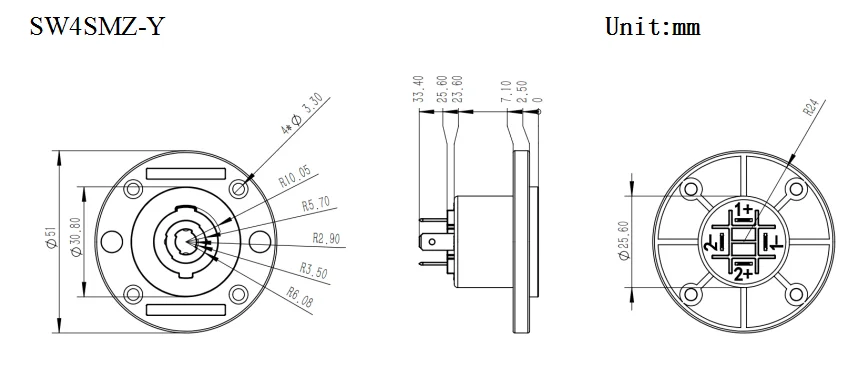

5.Size reference (unit /mm)
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
6.Assembly reference
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Application area
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Company Information
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Patent & Certification
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Exhibition activities
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Packaging reference
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
Payment and logistics
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
FAQ
4 Pin Loudspeaker Chassis Engineering Plastic Male Connector Round Shape Latch Lock with 4pins
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
