Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications

Product Categories
Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications

Application : Power

Contact Material : Copper Alloy

Rated Current : 7.5A

Model Number : SWF5X-2ZFB-KN(Black),SWF5X-2ZFS-KN(Silver)

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Female

Housing Material : Zinc Alloy

IP Level : IP65

Type : XLR Connector

Industrial electronics : accessories

MOQ : 10 pieces

Price : $1.36-1.43 / piece

Contact Now

Products Description

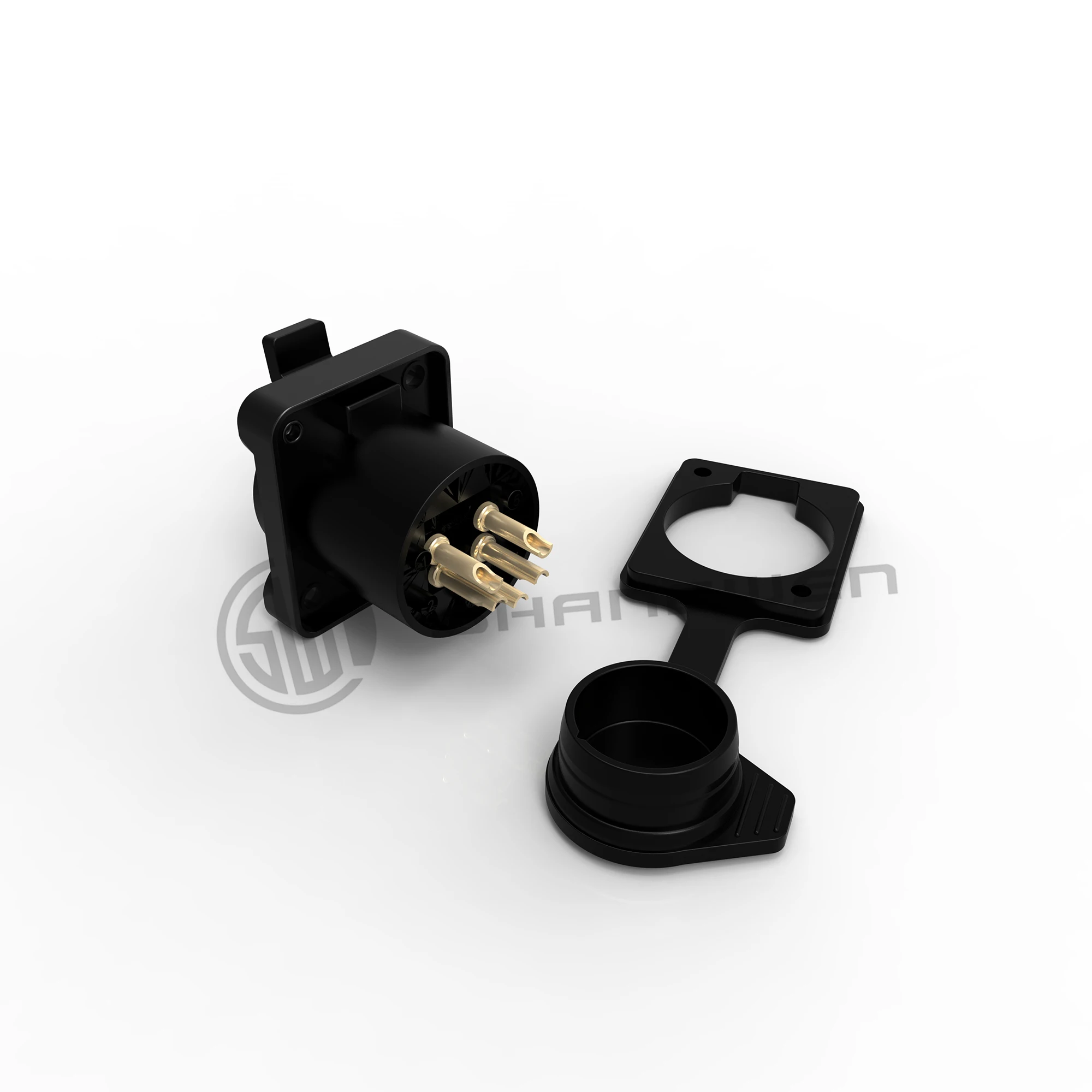

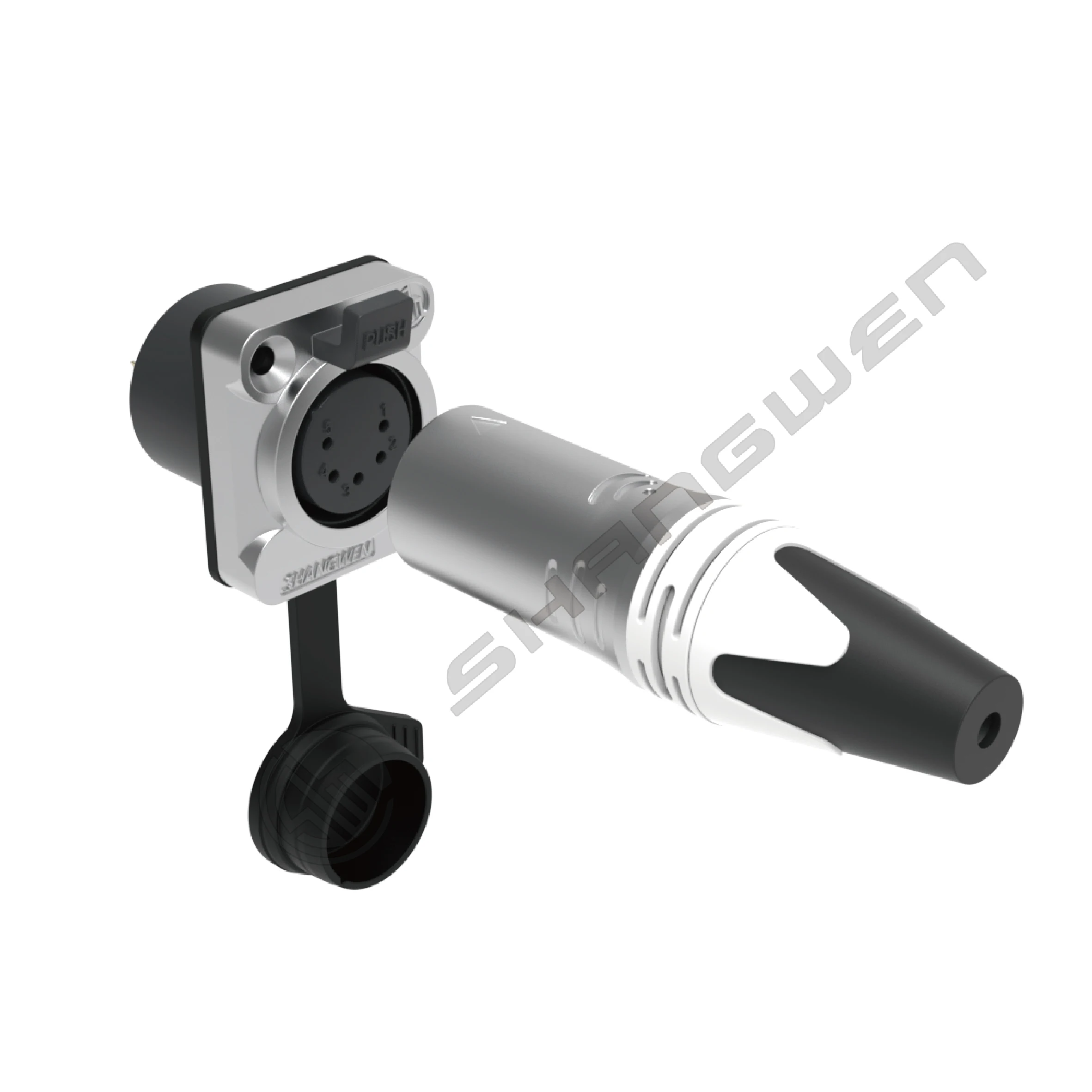

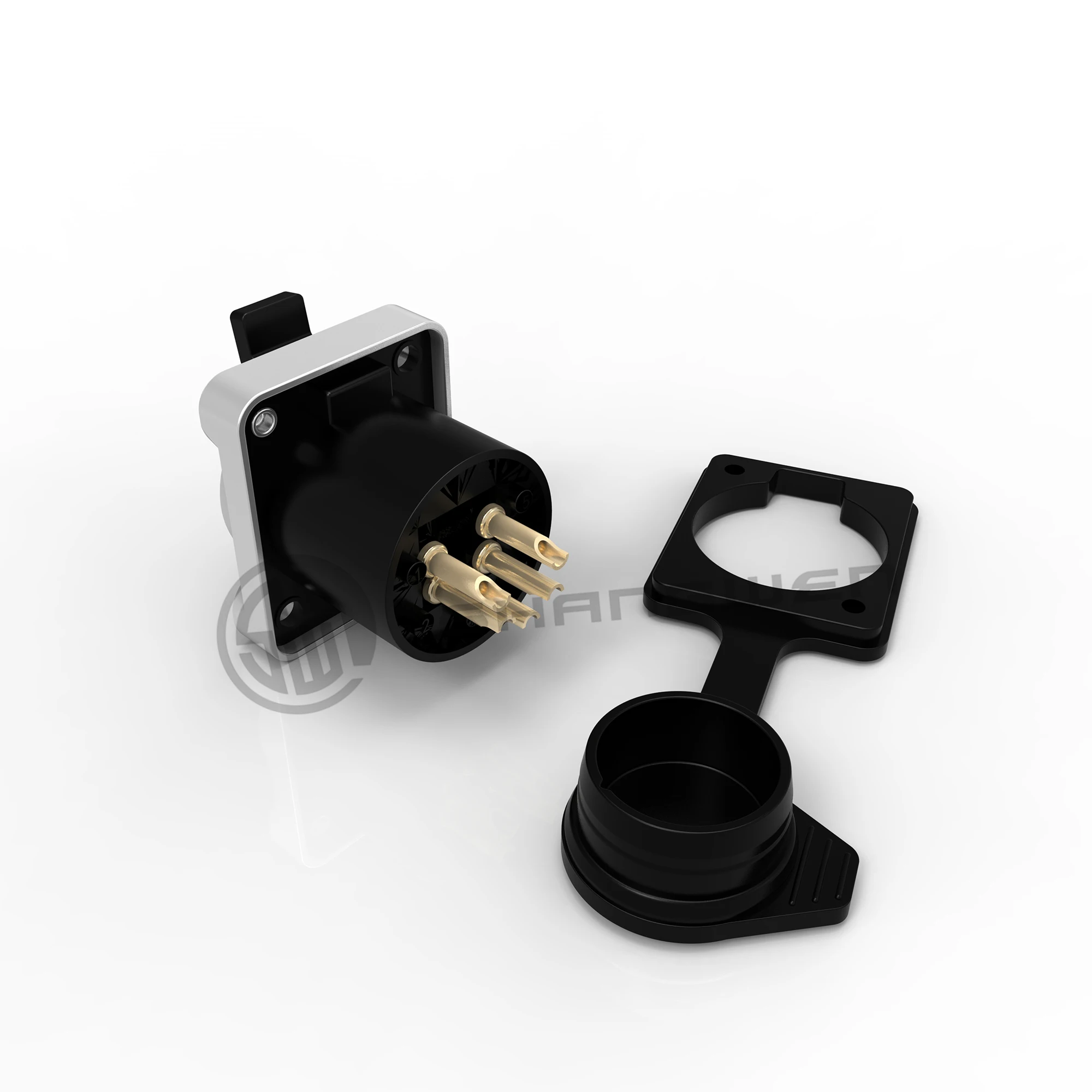

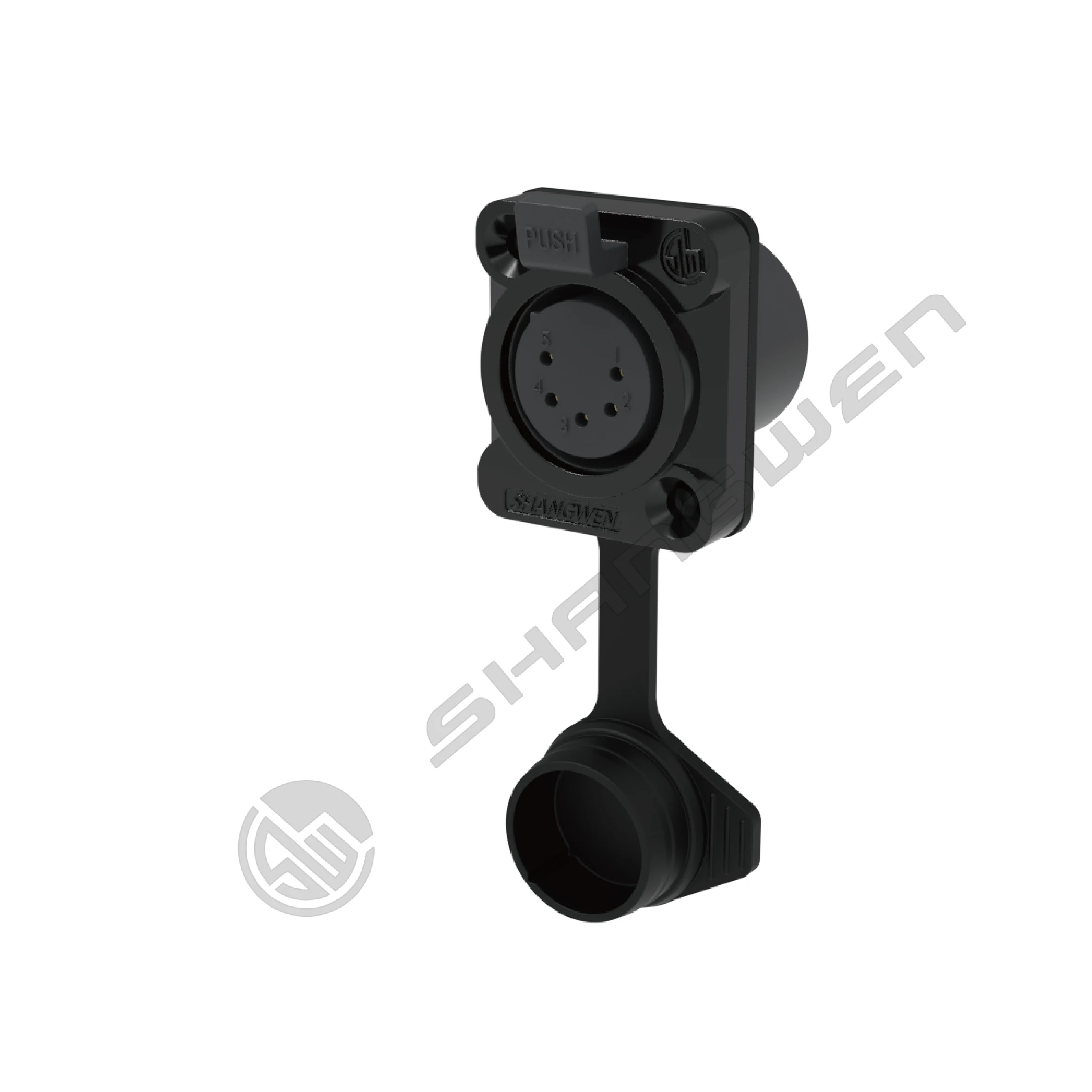

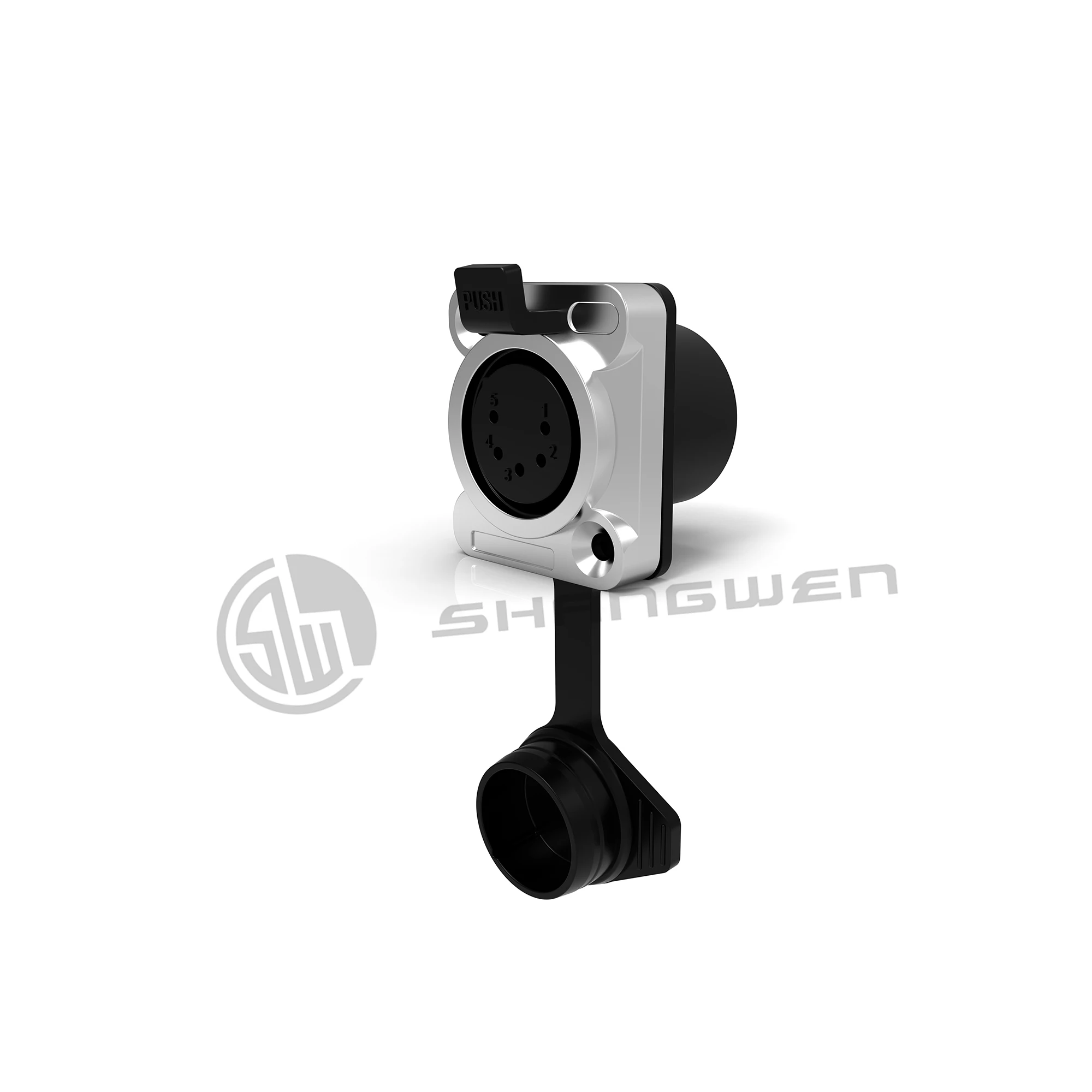

Waterproof XLR connector-5 pin female socket
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Model：SWF5X-2ZFS-KN (Black)
SWF5X-2ZFS-KN (Silver)
☑Sealed rubber jacket is waterproof and dust-proof
☑Standard D mounting dimensions, fully matched to existing installation
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Waterproof IP65
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
1.Product parameters
Connection Type
XLR
Gender
Female
2.Electrical parameters
Capacitance between contacts
≤7pF
Contact resistance
≤5mΩ
Dielectric strength
1.5kV DC
Insulation resistance
> 10GΩ (initial)
Rated current per contact
7.5A
Rated voltage
<50V
3.Mechanical parameters
Insertion force
≤ 20N
Withdrawal force
≤ 20N
Service life
＞1000 mating cycles
Chassis shape
D type
4.Material and environmental parameters
Contacts
Cu alloy
Contact plating
Au
Insert
Polyamide (PA 66 +30 % GF)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Cr
Solder ability
Complies with IEC 68-2-20
Flame-retardant grade
UL 94 HB
Protection class
IP65
Temperature range
-30℃to +80℃

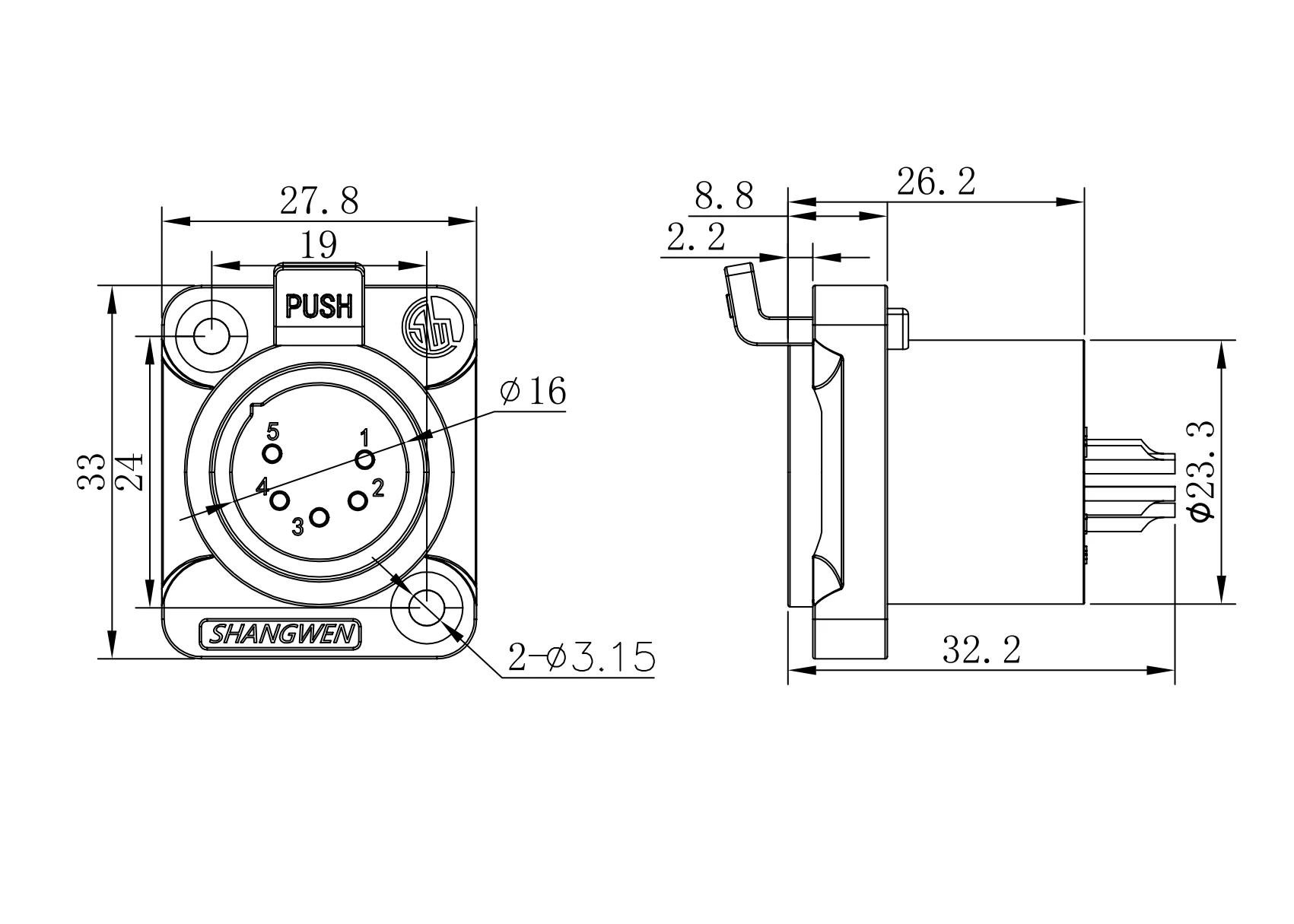

5.Size reference (unit /mm)
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Waterproof rubber(Unit:mm)
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Application area
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Company Information
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Patent & Certification
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Exhibition activities
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Packaging reference
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
Payment and logistics
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
FAQ
Outdoor Audio Waterproof 5-Pin XLR Female Jack Socket Connector Panel Mount with Sealed Rubber Jacket for Power Applications
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
