Outdoor 3Pin Power Waterproof PowerCon True1 High Current Capacity Lockable Triple Core 20A 250V True IP65 Waterproof Connector

Name: Outdoor 3Pin Power Waterproof PowerCon True1 High Current Capacity Lockable Triple Core 20A 250V True IP65 Waterproof Connector
Brand: SHANGWEN
Price: 2.40 USD

Quality Outdoor 3Pin Power Waterproof PowerCon True1 High Current Capacity Lockable Triple Core 20A 250V True IP65 Waterproof Connector for sale

Application : Power, Audio & Video

Rated Current : 20 A

Model Number : SW3FX-WN

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male

IP Level : IP65

Type : led display connector

Industrial electronics : Accessories

MOQ : 10 pieces

Price : $2.40-5 / piece

Contact Now

Products Description

Power connector series-male powercon（input port）

This series is widely used in outdoor rental LED display power connection.

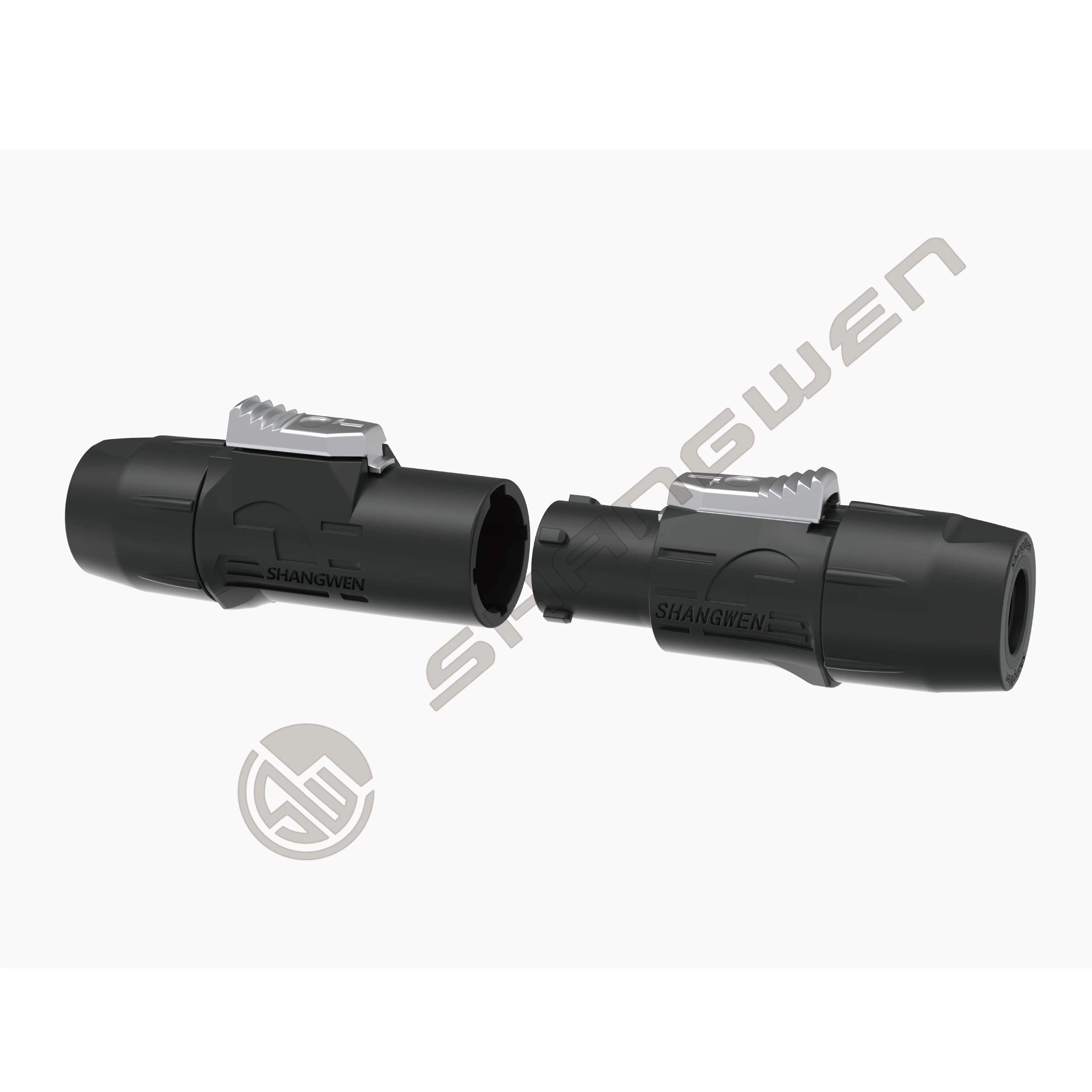

The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !

Outdoor 3Pin Power Waterproof PowerCon True1 High Current Capacity Lockable Triple Core 20A 250V True IP65 Waterproof Connector

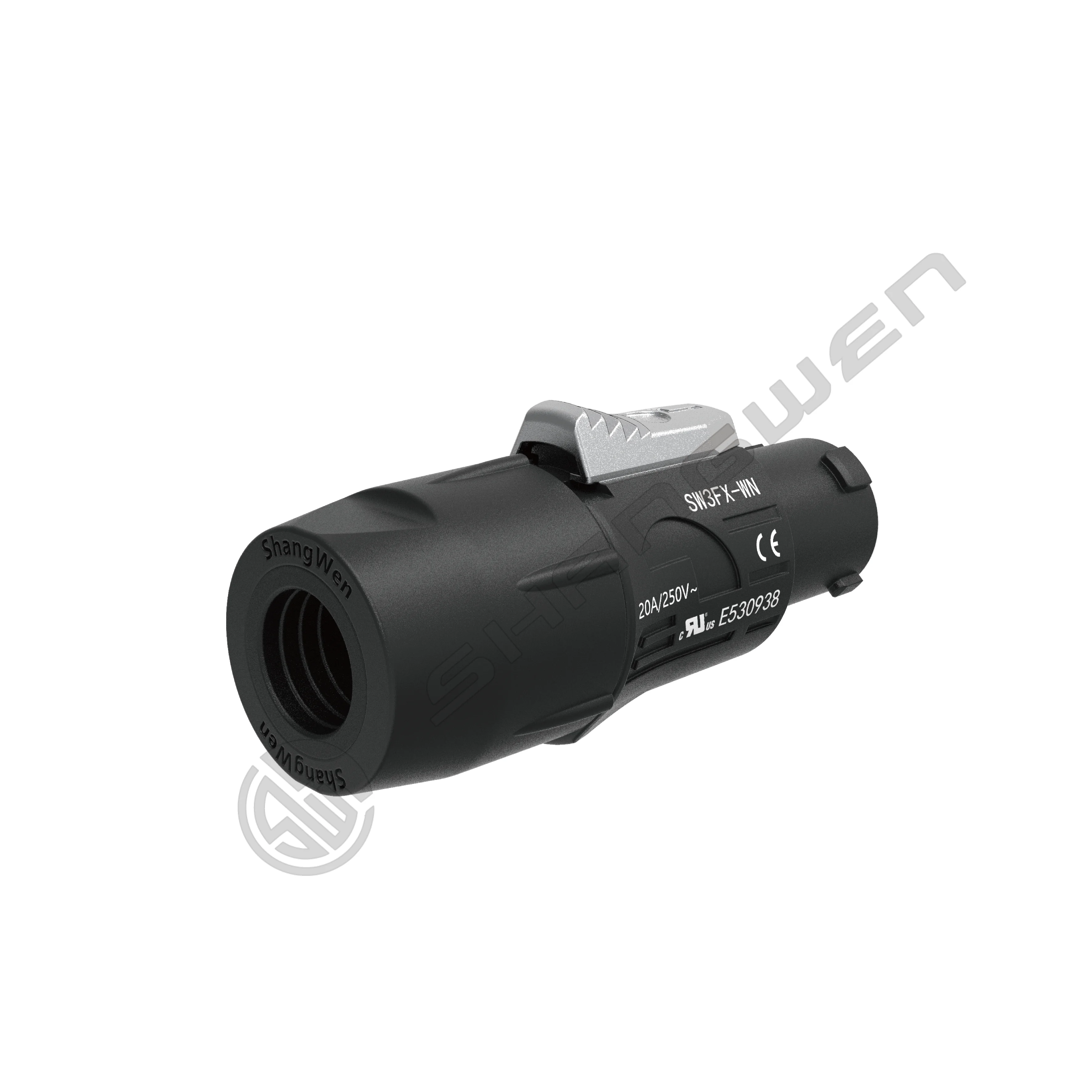

Model : SW3FX-WN ( outdoor use )

☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑High current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:

1. Screw clamping and welding
2. Lock the cable with screws
☑Protection level: used in outdoor scenes, protection level up to IP65
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force

1.Electrical parameters

Contacts NO.	2+PE
Rated current	20A
Rated voltage	250V AC
Contact resistance	≤5mΩ
Dielectric strength	2500V DC
Insulation resistance	＞1000MΩ

2.Mechanical parameters

Service life	＞1000 times
Power line	2.5mm²(8mm - 12mm)
Wire stripping length	7-8mm
Type of teminals	Screw type terminals

3.Material and environmental parameters

Shell	PA
Contacts	Cu alloy
Contact surface	Ag
Flame-retardant grade	UL94-V0
Protection grade	IP65
Temperature range	-25°C to +125°C

4.Size reference (unit /mm)

5.Installation reference drawing

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
