Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors

Product Categories
Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors

Application : Ethernet

Contact Material : Copper

Rated Current : 20 A

Rated Voltage : 250 V

Model Number : SW8FH-CZ

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male/Female

IP Level : IP67

Type : RJ45 socket

Industrial electronics : accessories

MOQ : 10 pieces

Price : $2.50-4 / piece

Contact Now

Products Description
Outdoor Metal Material Card Buckle 8 Core Male signal connector for Led Display RJ45 Connectors
Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Model：SW8FH-CZ（outdoor use）
☑This RJ45 system is suitable for very harsh environments
☑This cable connection kit works with most RJ-45 connectors
☑Rugged die-cast housing and unique wire rack lock
☑In commercial applications, protecting Ethernet connections, this design protects against the elements of RJ45 standard
components
☑The design of the inner O-ring enables the waterproof rating to reach IP65
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
1. Mechanical parameters
Service life
＞1000 mating cycles
Insertion force
≤20 N
Wiring
5-7mm
Locking device
latch lock
2. Material and environmental parameters
Boot
Polyamide
Shell
Zinc diecast
Shell plating
Pearl Cr
Temperature range
-30℃to +80℃

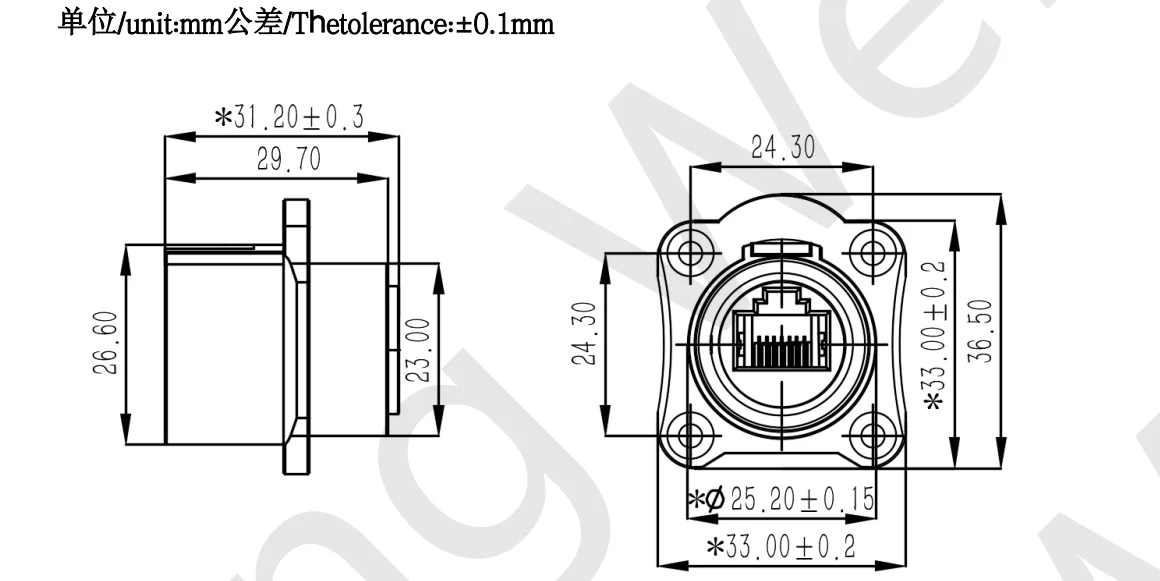

3. Size reference (unit /mm)
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
4. Installation instructions with RJ45 socket
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Application area
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Company Information
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Patent & Certification
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Exhibition activities
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Packaging reference
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
Payment and logistics
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
FAQ
Outdoor IP67 Rated 8-Pin Network Bridge RJ45 Connectors Socket 8 Core Male Signal Chassis Connector Metal Card Buckle Connectors
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
