Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector

Name: Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector
Brand: SHANGWEN
Price: 2.20 USD

Quality Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector for sale

Application : Ethernet

Model Number : SW8FDYE

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Female

Type : RJ45 socket

Industrial electronics : accessories

MOQ : 10 pieces

Price : $2.20-3.30 / piece

Contact Now

Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment, the socket is designed to become the standard in the design of industrial equipment panel installation, this type D size design perfect match the panel installation, RJ45 this in general formula design with metal blank and locking system at the same time, Includes panel mounting screws.

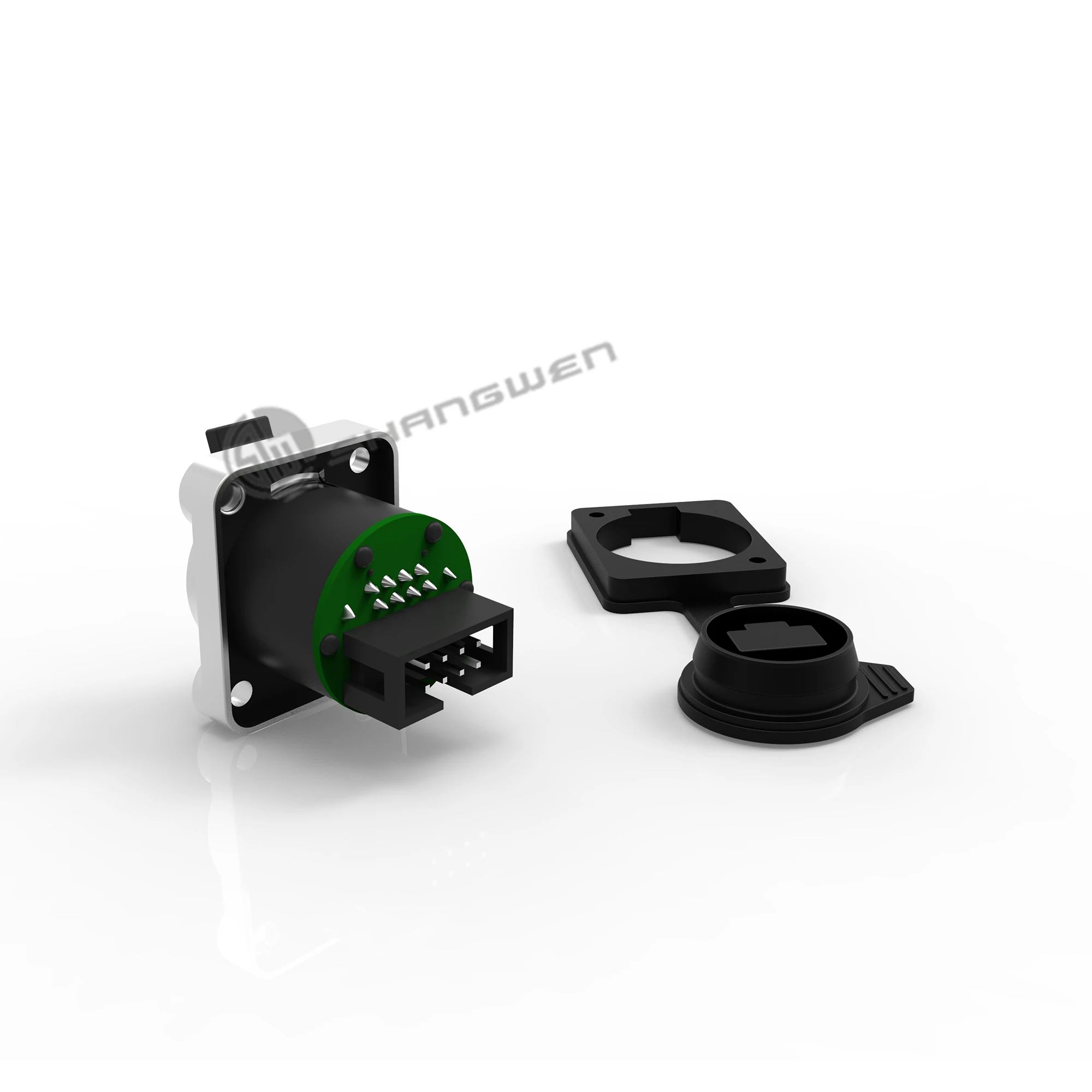

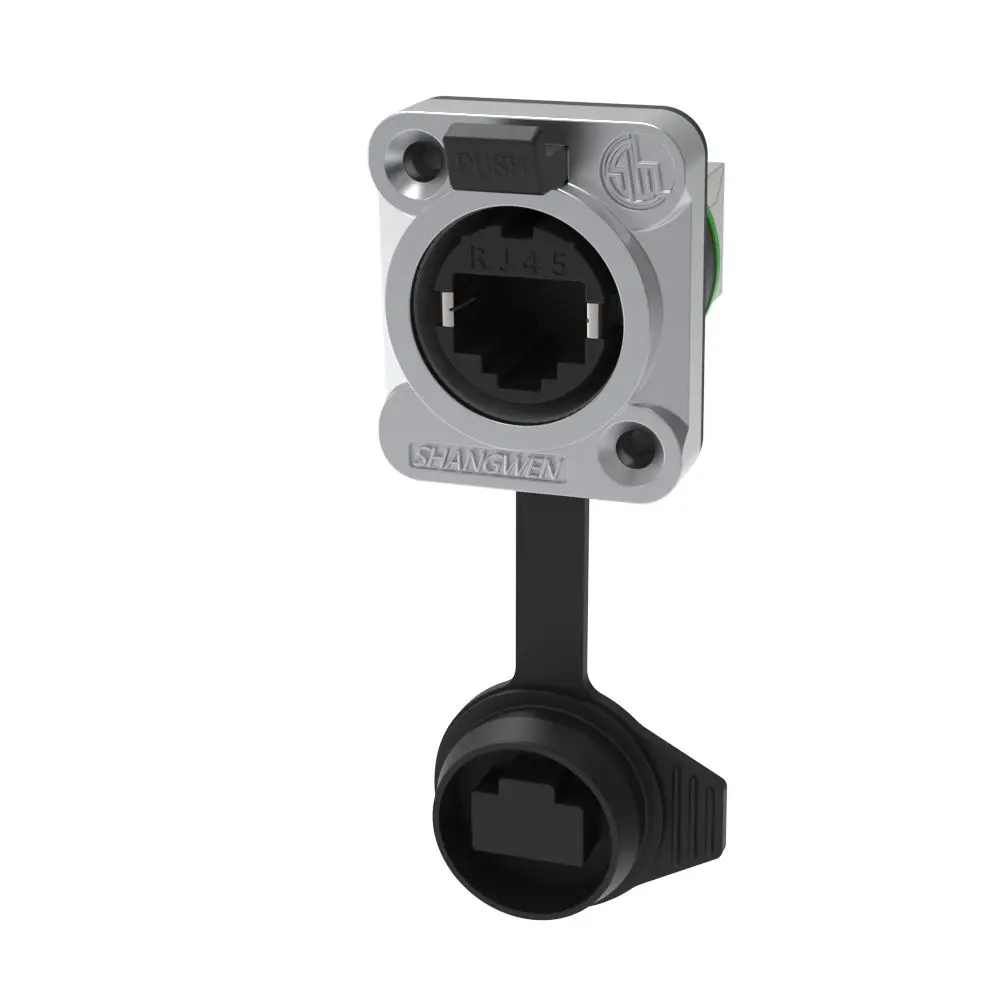

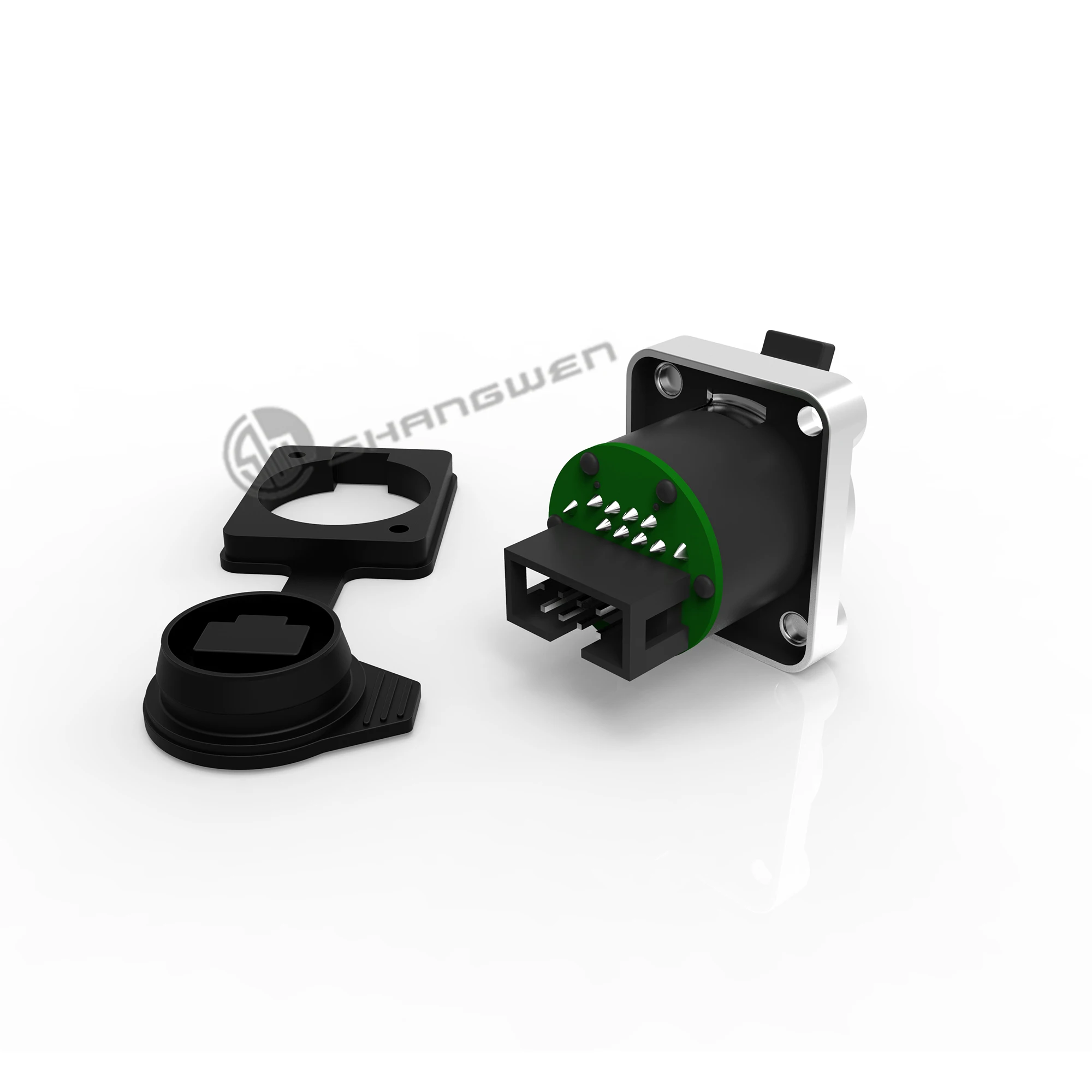

Outdoor IP65 Straight Plug 8P Horn Socket Rj45 8 Pin Female Connector Ethernet Signal Cable Network Electrical Cable Connector

Model：SW8FDYE（outdoor use）

*The rear end is a straight plug 8P horn, the opening direction is consistent with the direction of the button, IP65*

☑Can be compatible with SW8MC-B or any standard RJ45 connector
☑D style with uniform metal flange, standard D mounting size
☑Sockets are rated D according to TIA/EIA568B and ISO/IEC11801 standards
☑D style, can be mounted from front or rear panel

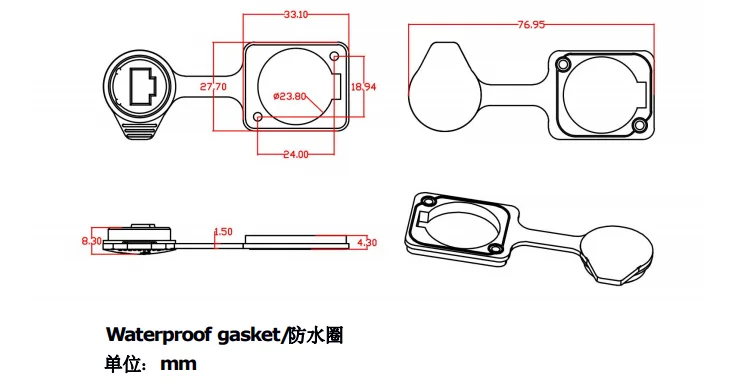

☑All sockets are equipped with waterproof gaskets. With the installation of gaskets, the protection grade of IP65 can be reached,
which can fully meet the durable and stable signal transmission under harsh outdoor conditions
☑The back-end can be flexibly modified according to actual requirements
☑The transmission grade reaches CAT5e and is compatible with transmission grades below 5E
☑With shielding function

1. Electrical parameters

Contact resistance	＜10mΩ
Rated current	1.5 A
Rated voltage	50 V
Insulation resistance	≥0.5GΩ
Dielectric strength	1KV DC
Frequencyrange	1-100 MHz
Transmission performance	CAT 5e

2. Mechanical parameters

Service life	＞1000 times
Insertion force	≤ 20 N
Locking device	latch lock
Chassis shape	D

3. Material and environmental parameters

Shell	Zinc diecast (ZnAl4Cu1)
Contacts	Bronze
Socket	PBT
Contact surface	Au
Shell surface	Pearl Cr
Temperature range	-30℃to +80℃

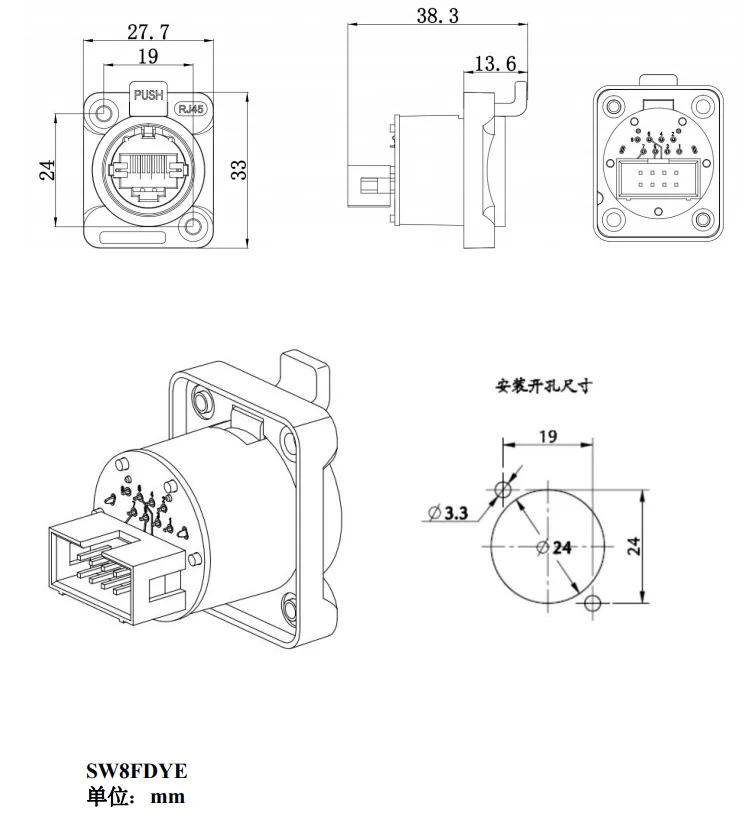

4.Size reference (unit /mm)

5.Internal structure reference

6. Installation instructions with SW8MC-B plugs
