M19 Series Push-pull Self-locking Black Connection Industrial 3+9 Pin Female Male Plug Power Signal Connector

Product Categories
Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

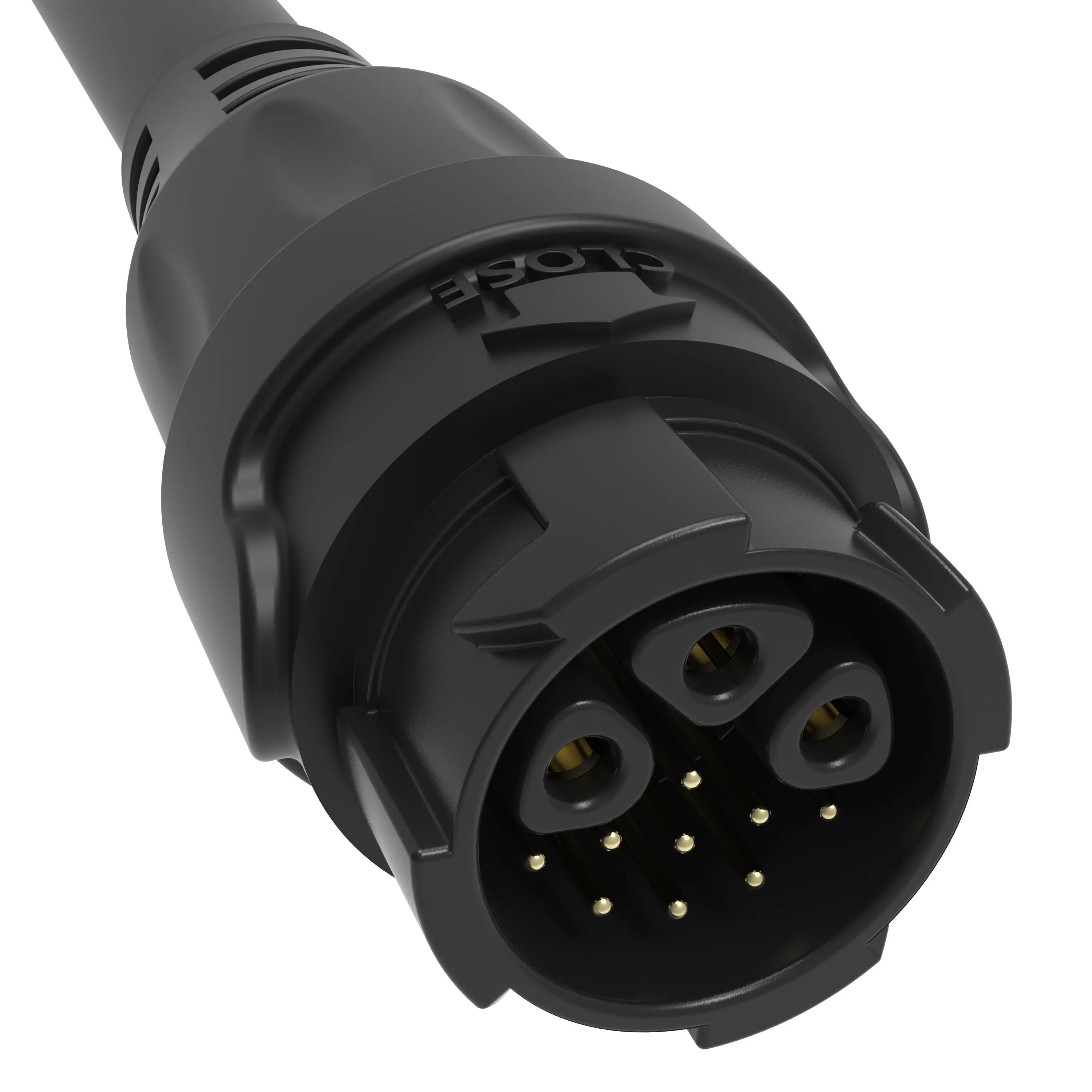

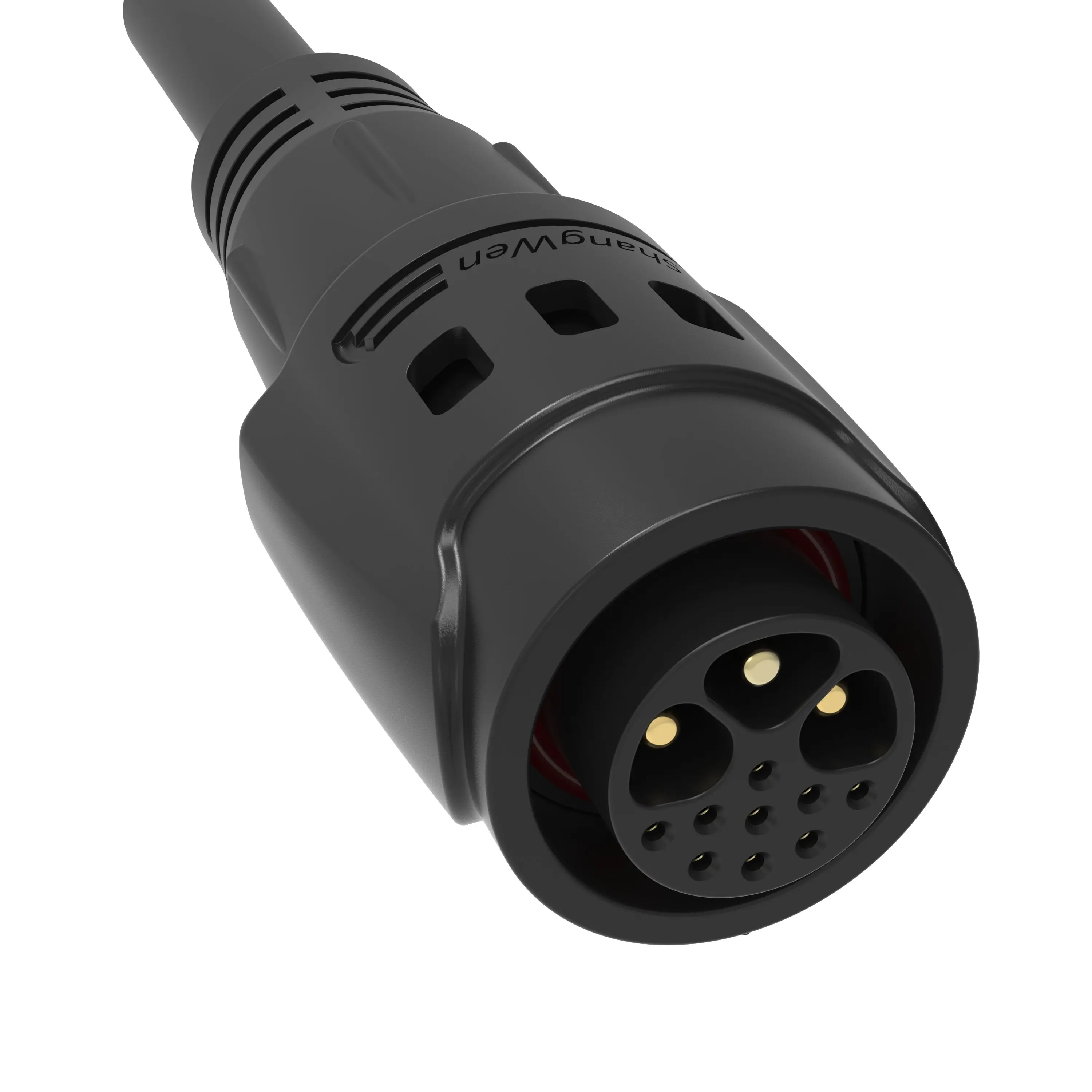

M19 Series Push-pull Self-locking Black Connection Industrial 3+9 Pin Female Male Plug Power Signal Connector

Place of Origin : Guangdong, China

Brand Name : SHANGWEN

Model Number : SWM19-12JS-TB

Type : SW19 Self-locking series

Application : Industrial

Gender : Male

Industrial electronics : accessories

MOQ : 10 pieces

Price : $1.58-2.20 / piece

Contact Now

Products Description
SW19 Self-locking series-3+9 Pin connector

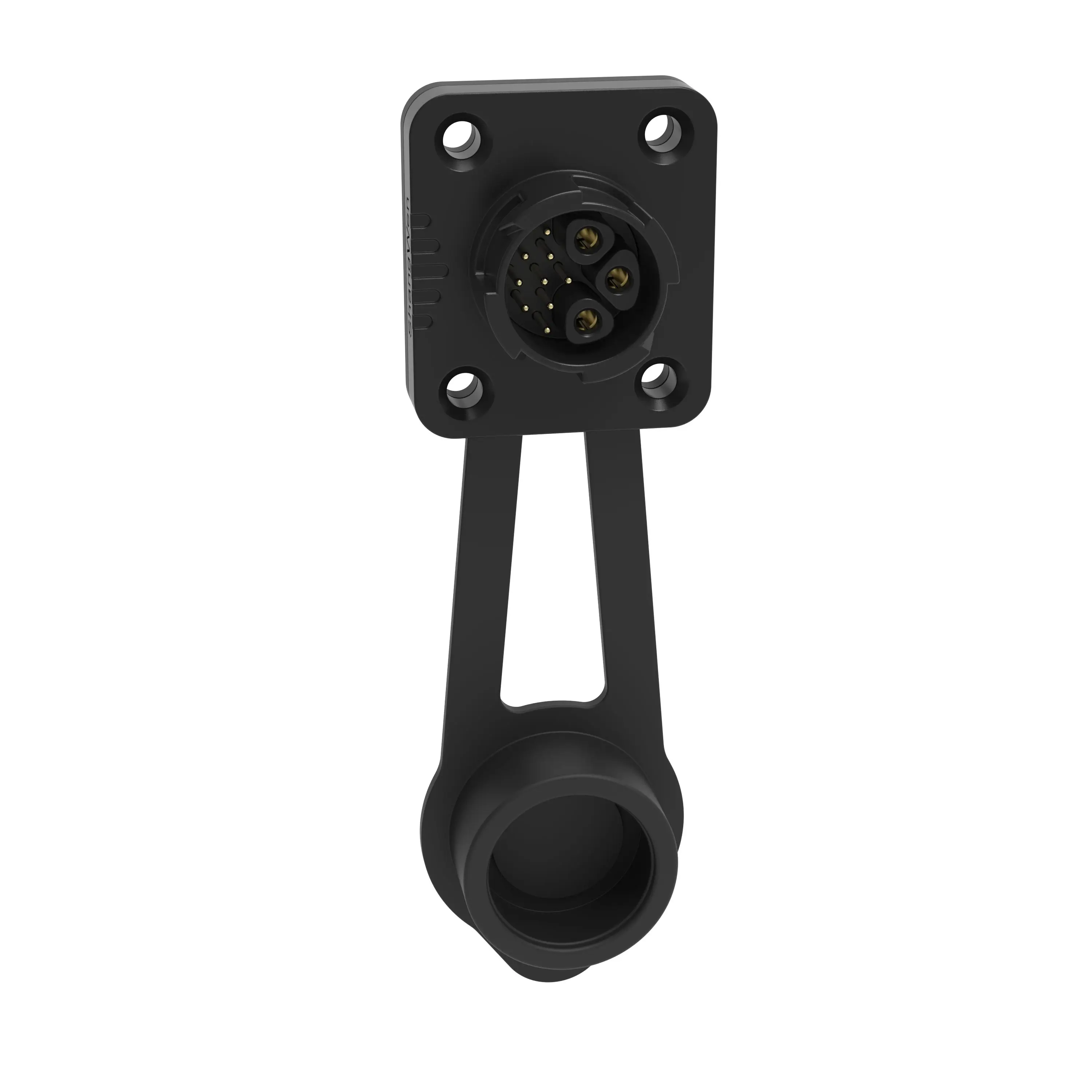

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
M19 Series Push-pull Self-locking Black Connection Industrial 3+9 Pin Female Male Plug Power Signal Connector
Model : SWM19-12KJS-TY
☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP67
M19 Series Push-pull Self-locking Black Connection Industrial 3+9 Pin Female Male Plug Power Signal Connector
