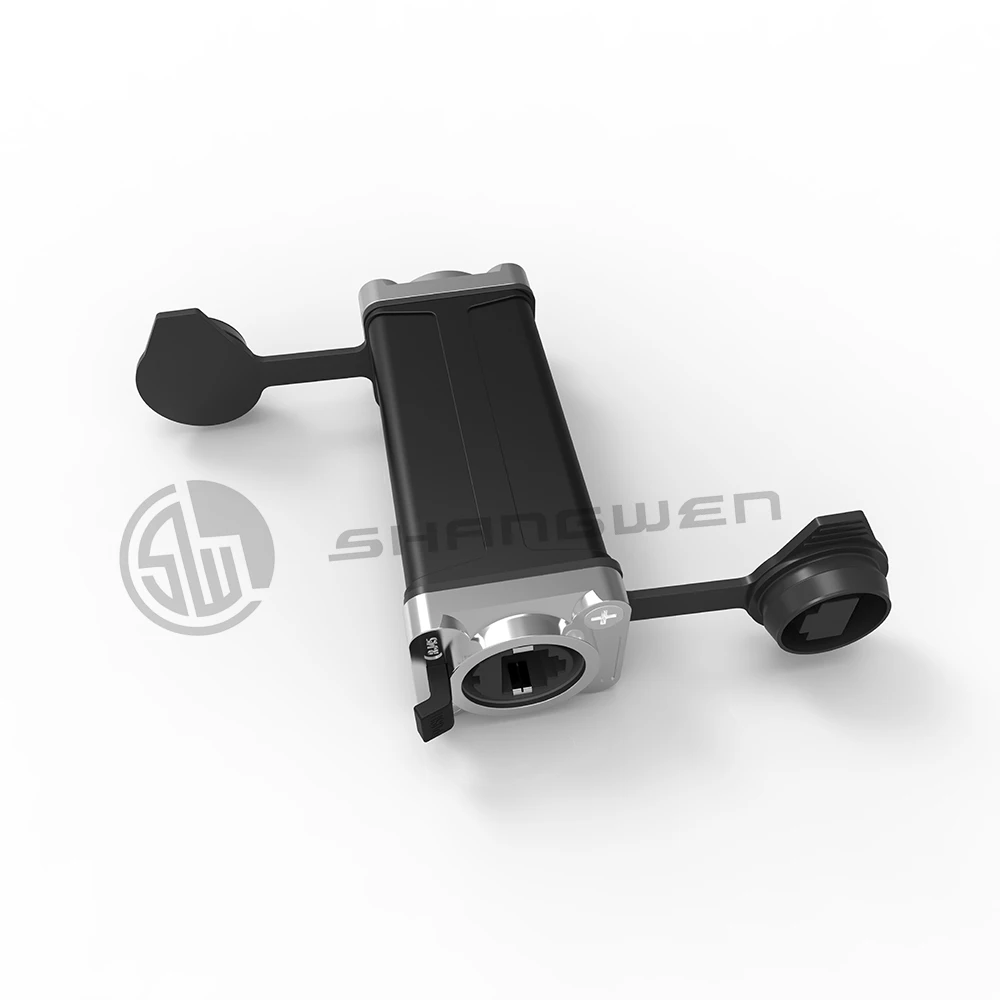

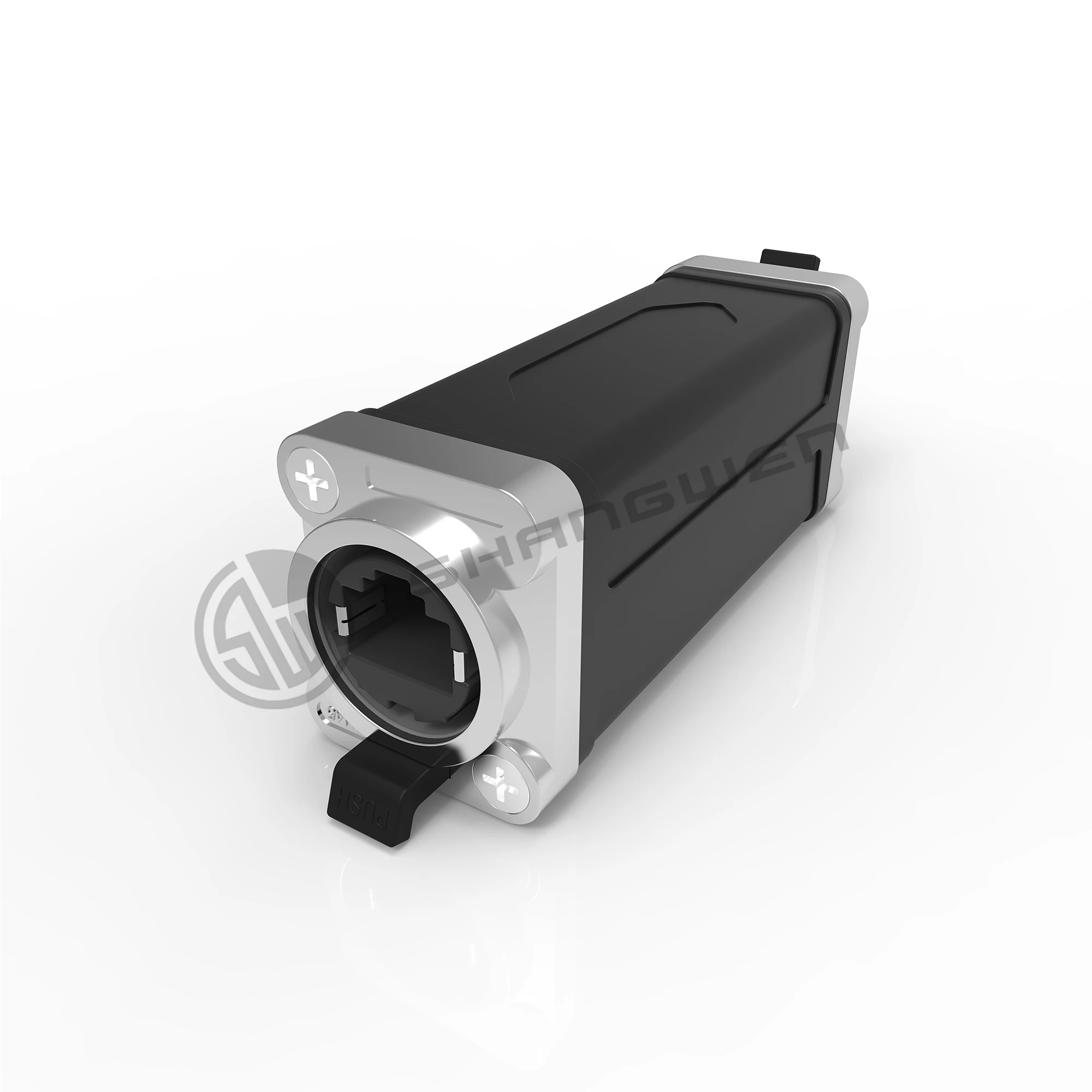

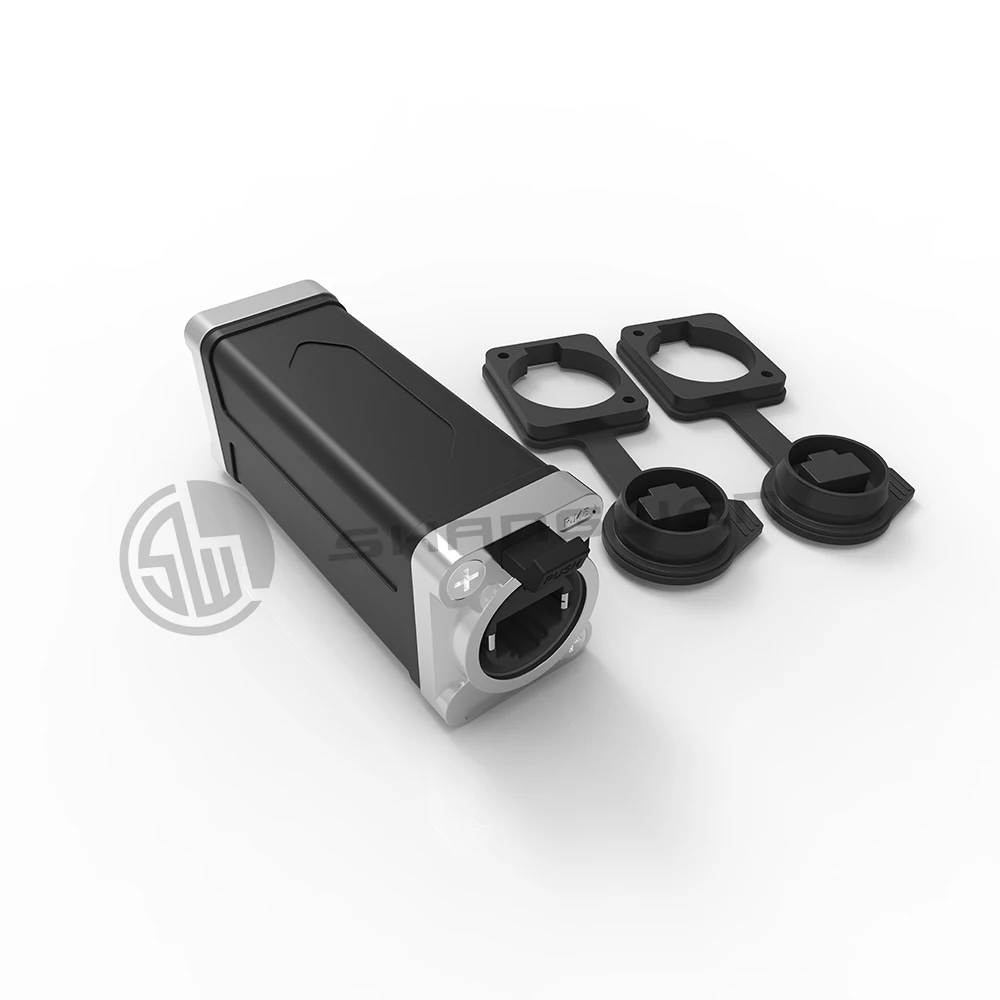

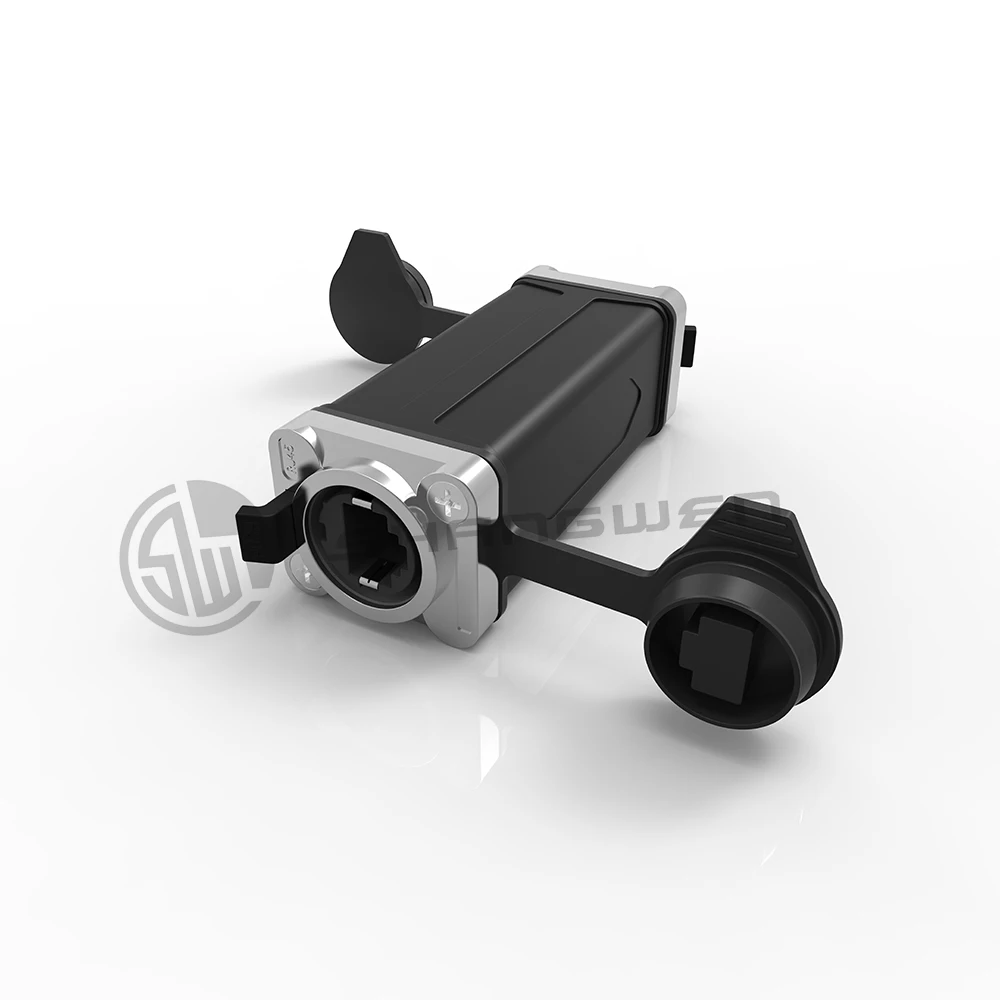

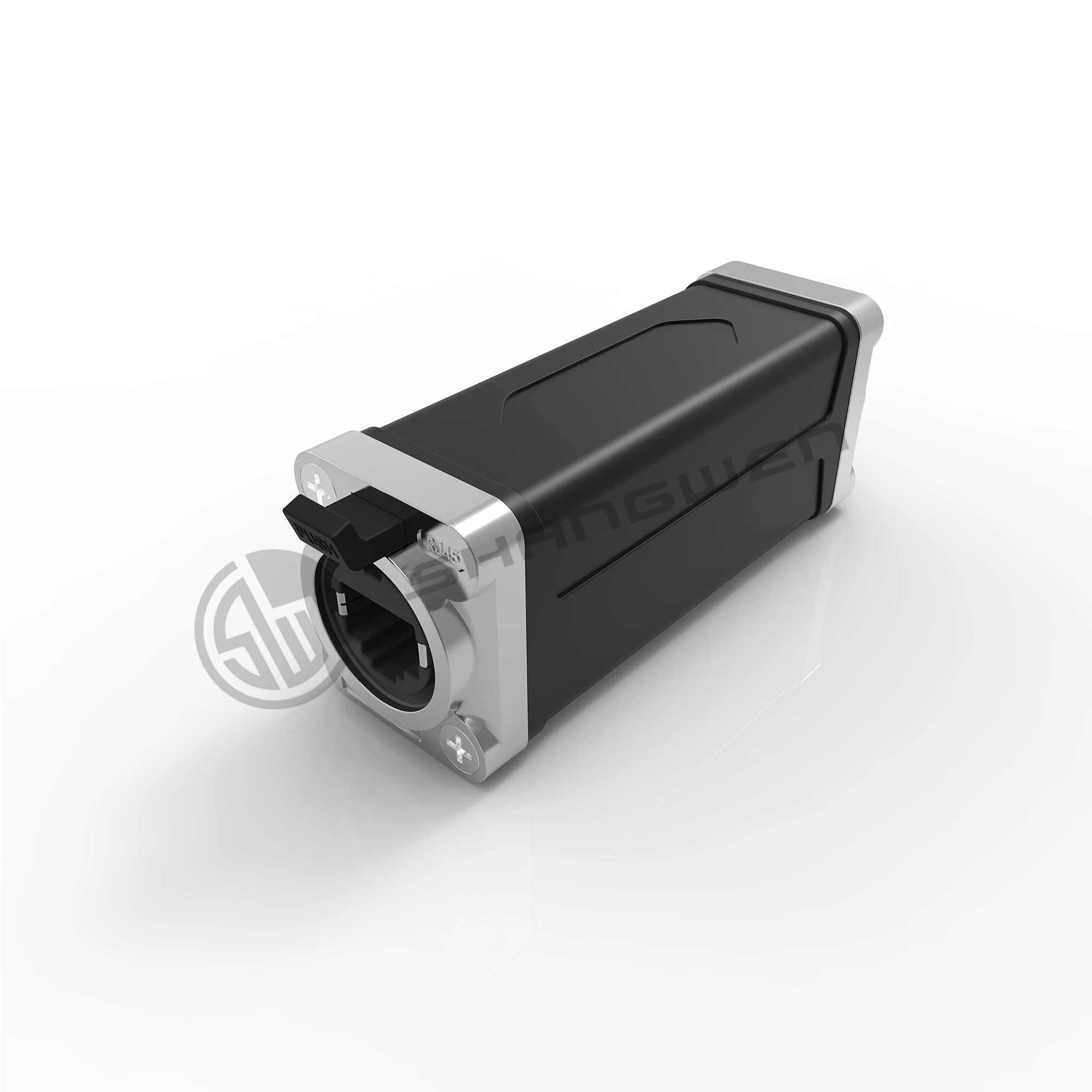

Wholesale Outdoor Coupler Rj 45 Plug Female Signal Adapter Cable Connectors

Name: Wholesale Outdoor Coupler Rj 45 Plug Female Signal Adapter Cable Connectors
Brand: SHANGWEN
Price: 5.20 USD

Quality Wholesale Outdoor Coupler Rj 45 Plug Female Signal Adapter Cable Connectors for sale

Model Number : Outdoor signal adapter

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Female

Type : Adapter

Industrial electronics : accessories

MOQ : 2 pieces

Price : $5.20 / piece

Contact Now

Products Description

etherCON feedthrough coupler for cable to cable extensions

Wholesale Outdoor Coupler Rj 45 Plug Female Signal Adapter Cable Connectors

Outdoor signal adapter connector

☑Accommodates NE8MC* or any standard RJ45 plug
☑NE8FF coupler (adapter) for cable to cable mating – use with NE8MC carriers or any standard RJ45 plug
☑Approved latch lock system

1.Product parameters

Connection Type	Coupler (adapter)
Gender	Female

2.Electrical parameters

Contact resistance	< 10 mΩ
Dielectric strength	1 kVdc
Frequency Range	1 - 100 MHz
Insulation resistance	> 0.5 GΩ
Rated current per contact	1,5 A
Rated voltage	< 50 V
Standards compliant	TIA/EIA 586B, IEC11801

3.Mechanical parameters

Insertion force	≤ 20 N
Pull out force	≤ 20 N
Service life	> 1000 mating cycles
Locking device	Latch lock

4.Material and environmental parameters

Contacts	Bronze (CuSn8)
Contact plating	0.2 µm Au over Ni plating
Inner core	PBTP 15 % GR
Shell	AlMgSi 0.5, black plated
Clamping sleeve	CuZn35Pb2, tinned
Flammability	UL 94 HB
Temperature range	-30 °C to +80 °C

5.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
