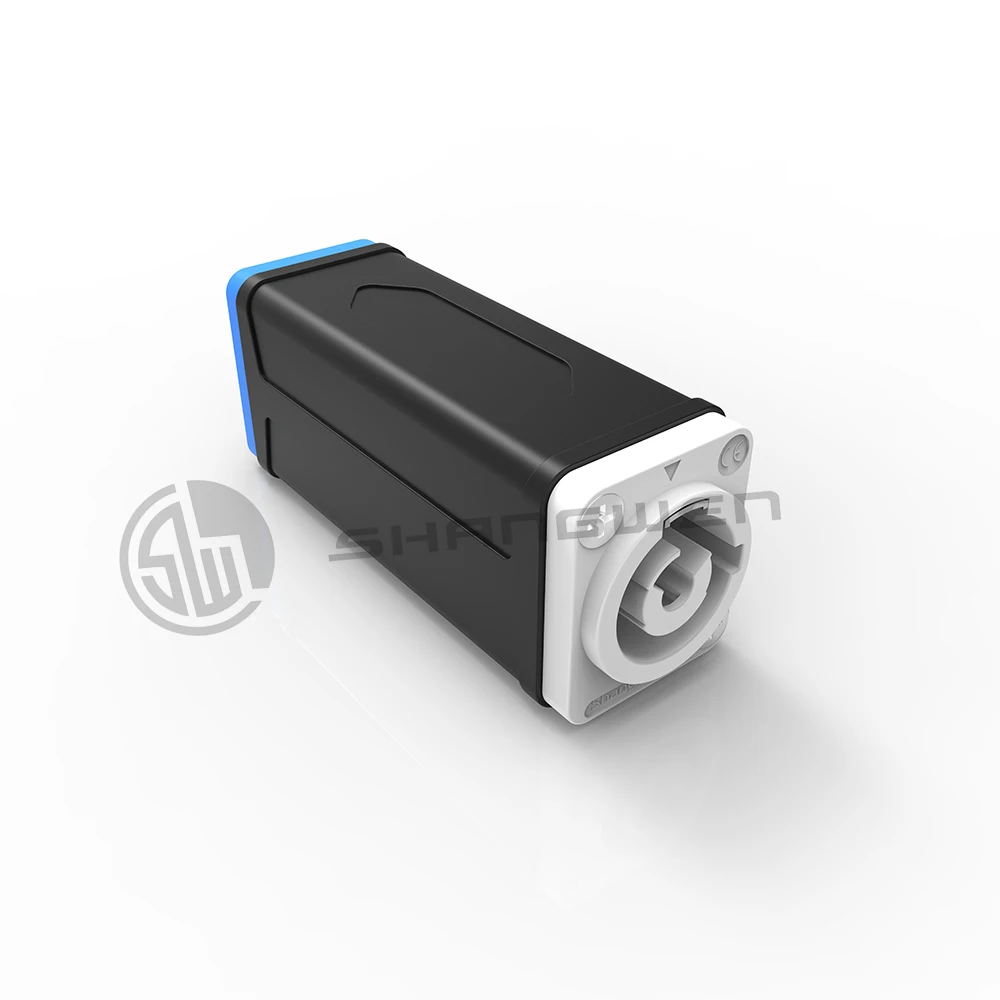

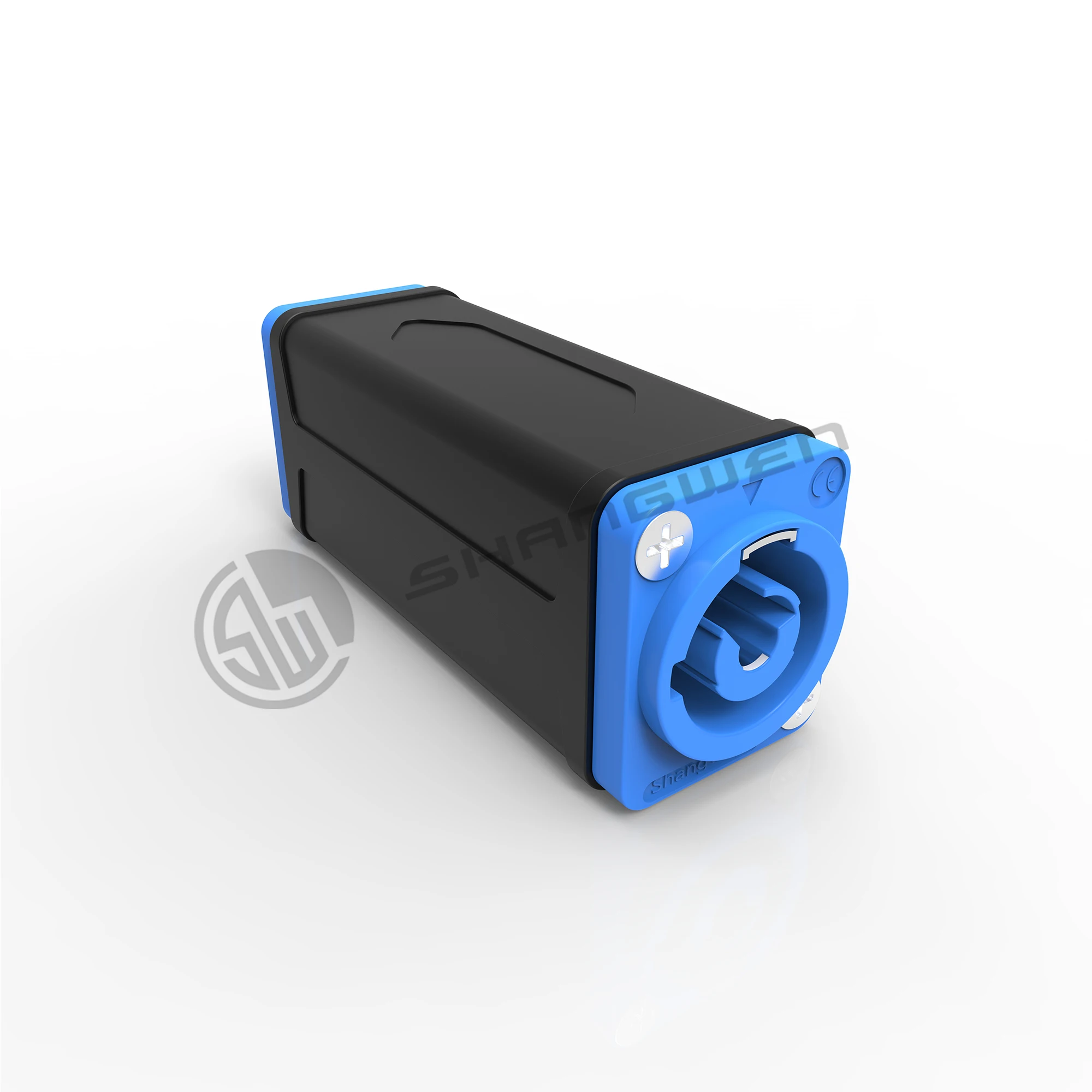

Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire

Model Number : SW3ZB

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male

Type : Adapter

Industrial electronics : accessories

MOQ : 5 pieces

Price : $3 / piece

Contact Now

Products Description
powerCON – Locking 3 Pole Power Connectors
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Indoor power connector
Lockable 3 pole single phase equipment (AC) connector
High current capacity, rated at 20 A / 250 V ac
Colour coded for easy identification, powerCON offers power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy locking system Extremely robust and reliable Excellent cable retention UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360) New latch design for easier handling and secure locking Coupler for linking cables (couples SW3ZB to SW3ZW)
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
1.Product parameters
Connection Type
Adapter
Gender
Male
2.Electrical parameters
Contact resistance
≤ 3 mΩ
Dielectric strength
4 kVdc
Insulation resistance
> 0.1 GΩ (IEC 68-2-30)
Rated current per contact
20 A rms
Rated voltage
250 V ac
3.Mechanical parameters
Service life
>1000 mating cycles
Locking device
Quick lock
4.Material and environmental parameters
Contact plating
2 µm Ag
Lock material
Steel Ck67
Shell
Polyamide(PA 6.6 30 % GR)
Contact
Bronze (CuNi1Si0.2)
Flame-retardant grade
UL 94 V-0
Protection class
IP 20(After connecting)
Safety requirements
EN/IEC 61984
Solderability
Complies with IEC 68-2-20
Temperature range
-30℃to +80℃

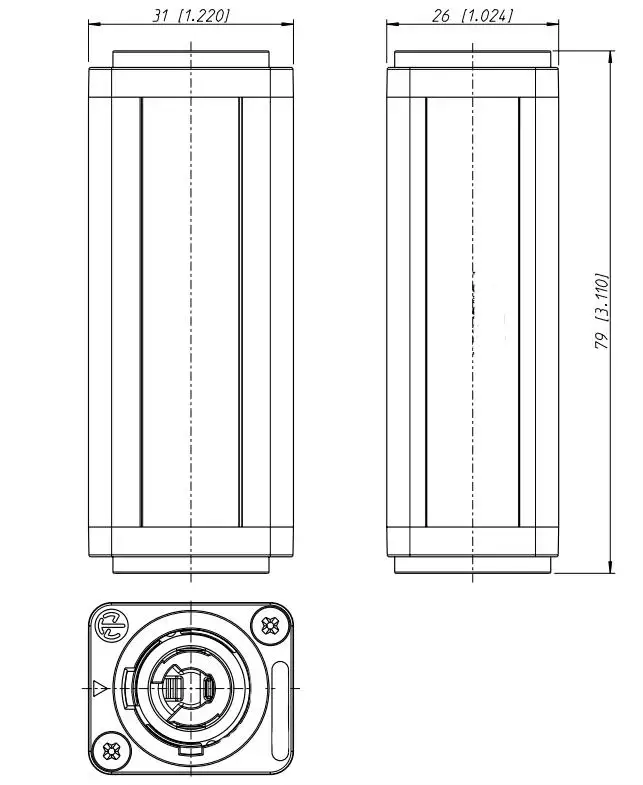

5.Size reference (unit /mm)
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
6.Assembly reference
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Application area
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Company Information
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Patent & Certification
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Exhibition activities
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Packaging reference
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
Payment and logistics
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
FAQ
Customized China Indoor Locking 3 Pole Male Powercon Connector for Cable Wire
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
