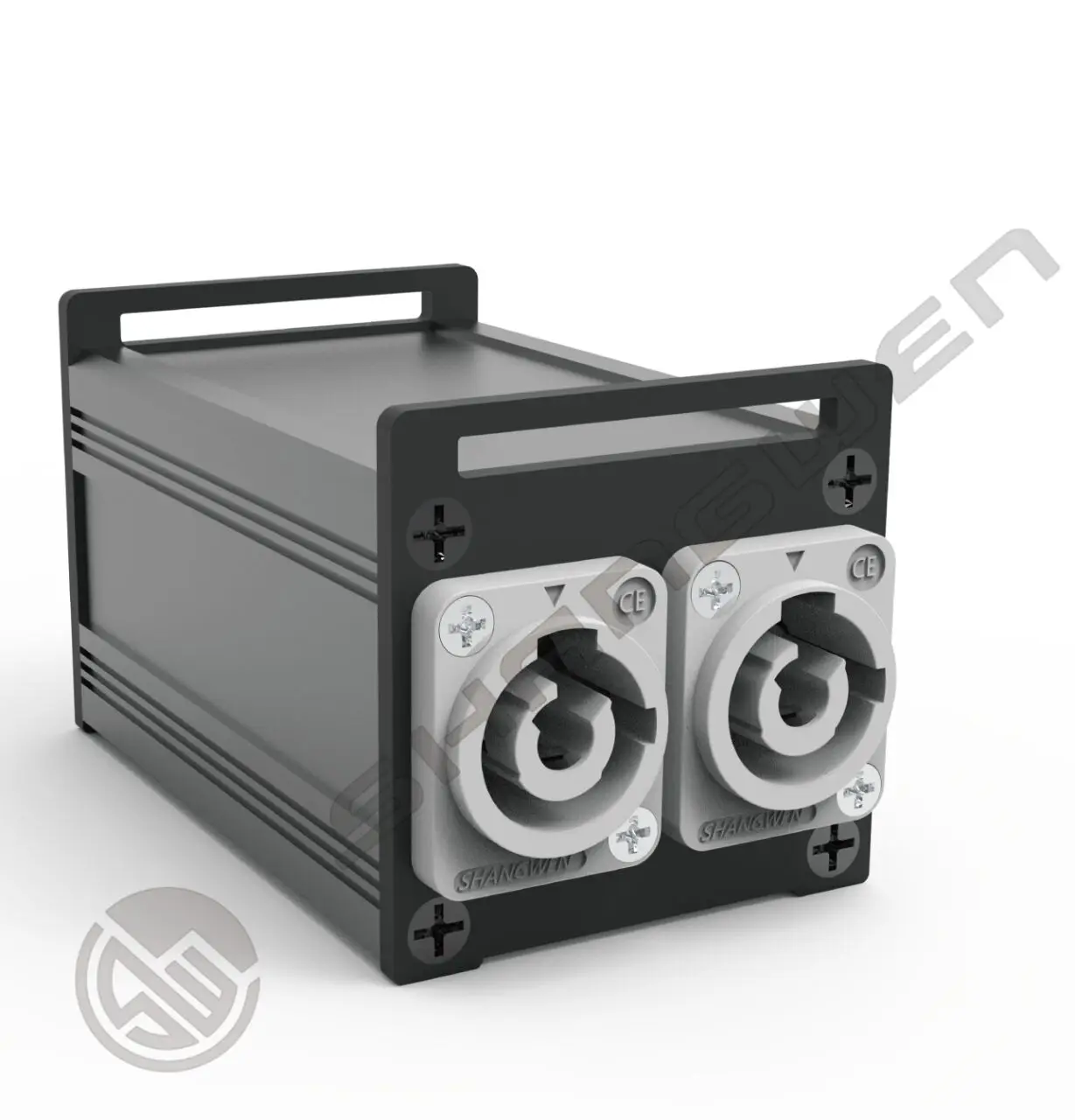

Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket

Product Categories
Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket

Application : With LED Light, stage

Contact Material : Copper

Rated Current : 20 A

Rated Voltage : 250 V

Model Number : SW3FWT23

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male/Female

Housing Material : plastic

IP Level : IP40

Type : Adapter

Industrial electronics : Accessories

Light Source : LED

Material : Aluminum

MOQ : 20 pieces

Price : $10 / piece

Contact Now

Products Description
Powercon 1 Input Male Female Connectors for LED Stage Lights Audio Equipment Power Couple Socket
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
SW3FWT23
☑Lockable 3 pole single phase equipment (AC) connector
☑High current capacity, rated at 20 A / 250 V ac
☑Fast and easy locking system ☑Extremely robust and reliable ☑Excellent cable retention ☑New latch design for easier handling and secure locking
1.Product parameters
Product
SWSFWT23
Connection Type
Adapter
2.Electrical parameters
Contact resistance
≤ 3 mΩ
Dielectric strength
4 kVdc
Insulation resistance
> 0.1 GΩ (IEC 68-2-30)
Rated current per contact
20 A rms
Rated voltage
250 V ac
3.Mechanical parameters
Service life
＞1000 mating cycles
Locking device
Quick lock
4.Size reference (unit /mm)
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
Application area
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
Company Information
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
Patent & Certification
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
Exhibition activities
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
Packaging reference
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
Payment and logistics
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
FAQ
Powercon 1 Input Male Female Blue White Connectors for LED Stage Lights Audio Equipment Power Coupler Socket
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
