M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector

Application : With LED Light, Power, Industrial

Contact Material : Copper

Rated Current : 1.5 A

Rated Voltage : 50V

Model Number : SWF19-3TLS-N9

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male/Female

Type : SW19 Self-locking series

Industrial electronics : accessories

MOQ : 10

Contact Now

Products Description
SW19 Self-locking series-9 Pin connector

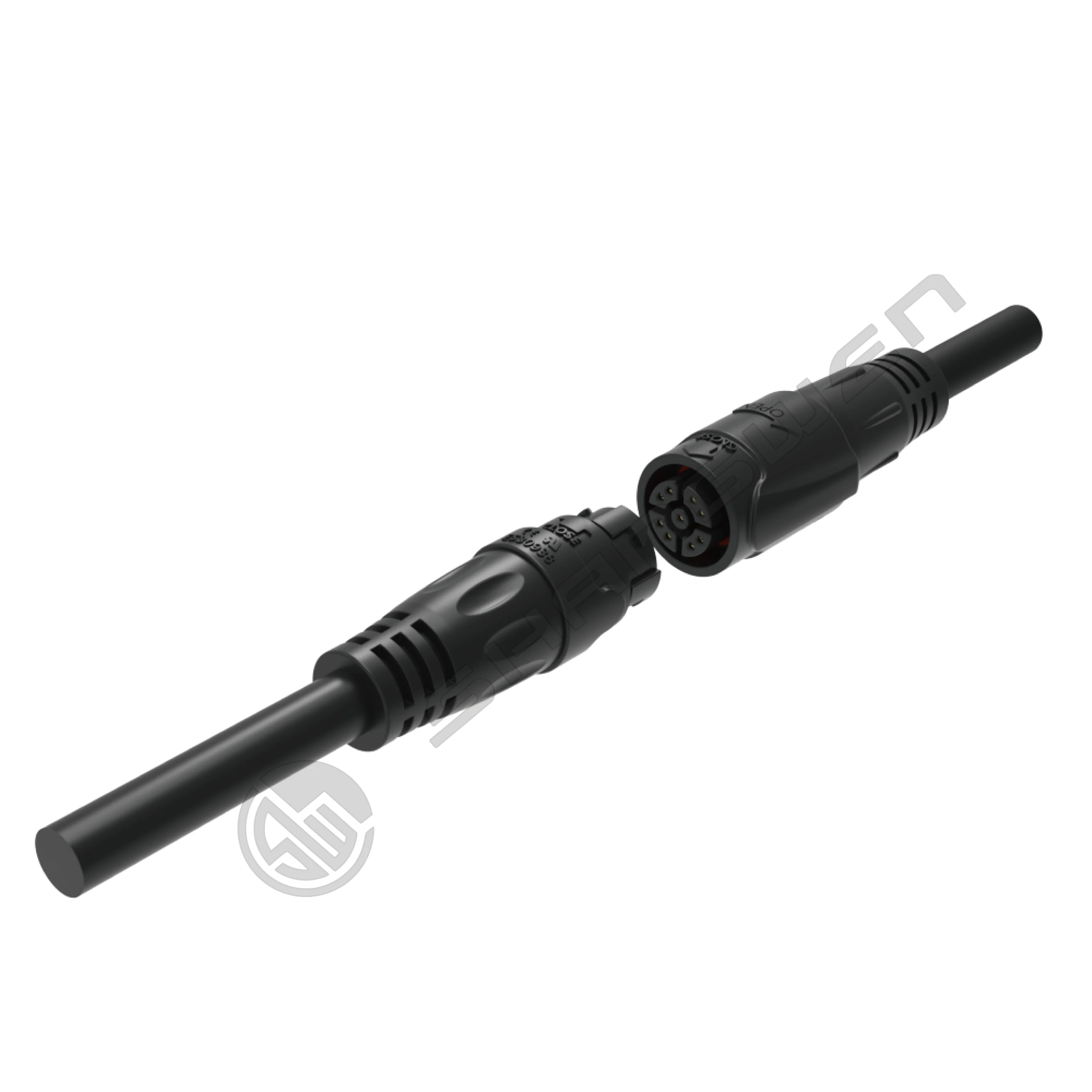

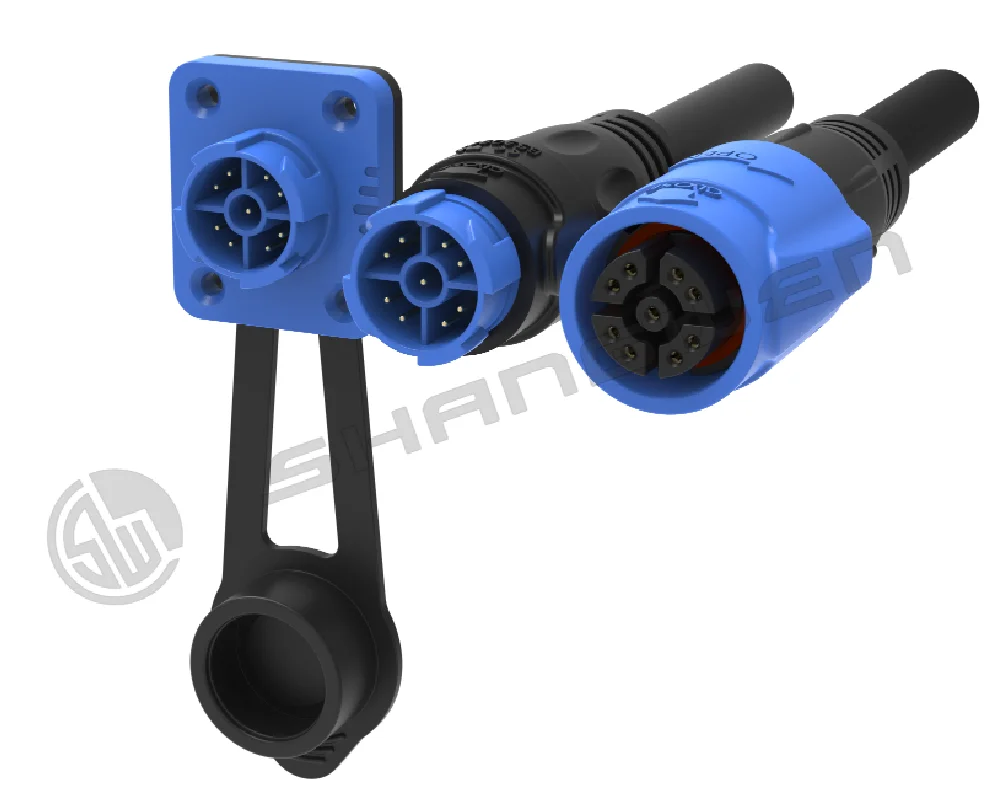

M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector

☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP65
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
1.Electrical parameters
Contacts NO.
9 pin
Rated current
1.5A
Rated voltage
50V AC
Withstand voltage
1500V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
Φ4.5mm-Φ11mm
Cable size
0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals
Screw terminal and soldering terminal available
3.Material and environmental parameters
Shell
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ2.4mm
Protection degree
IP65
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃

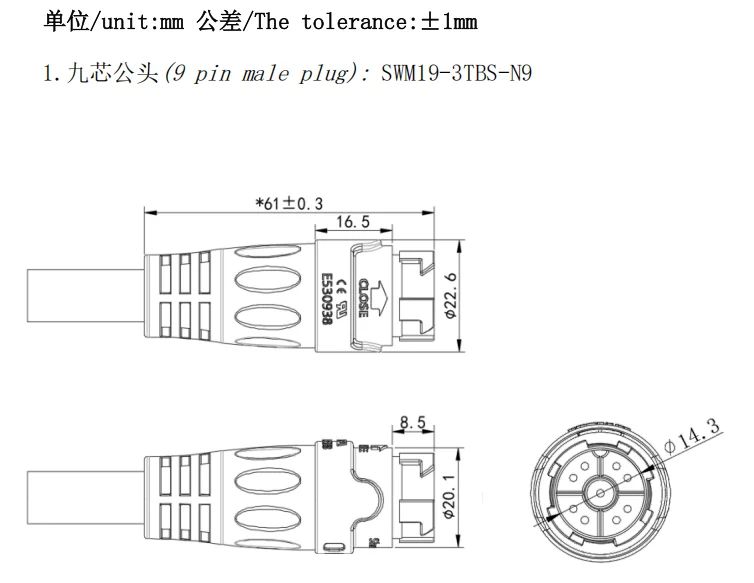

4.Size reference (unit /mm)
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
Application area
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
Company Information
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
Patent & Certification
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
Exhibition activities
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
Packaging reference
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
Payment and logistics
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
FAQ
M19 Series Push-pull Self-locking Blue Connection Industrial 9 Pin Cross Female Male Plug signal Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
