IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector

Application : Industrial

Contact Material : Copper

Rated Current : 20 A

Rated Voltage : 250 V

Model Number : SWM19-3TYS-E3

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male

Housing Material : PA66

Type : SW19 Self-locking series

Industrial electronics : accessories

Shell,insulating parts : High -performance engineering plastics

Material of copper needles : Copper alloy

MOQ : 10

Contact Now

Products Description

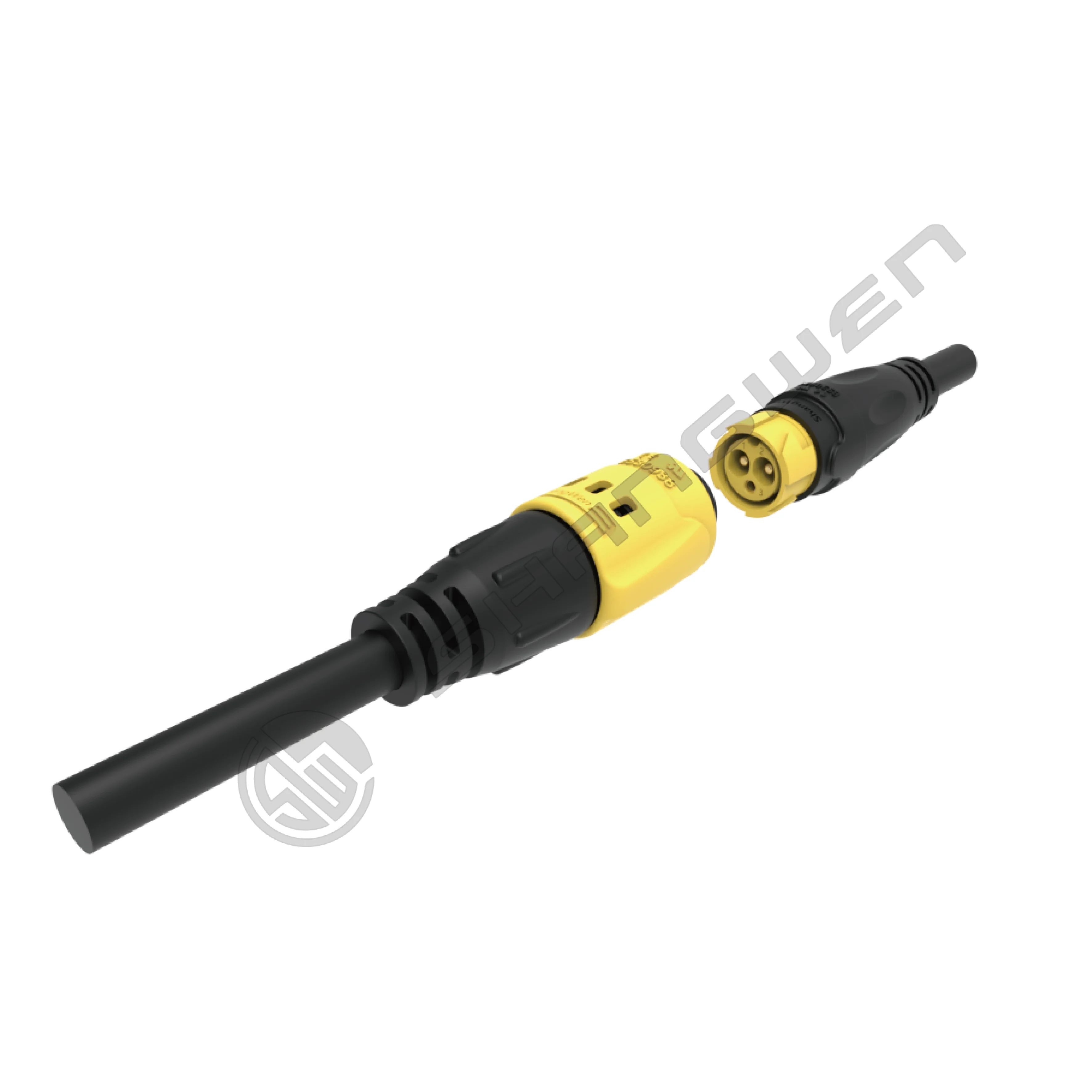

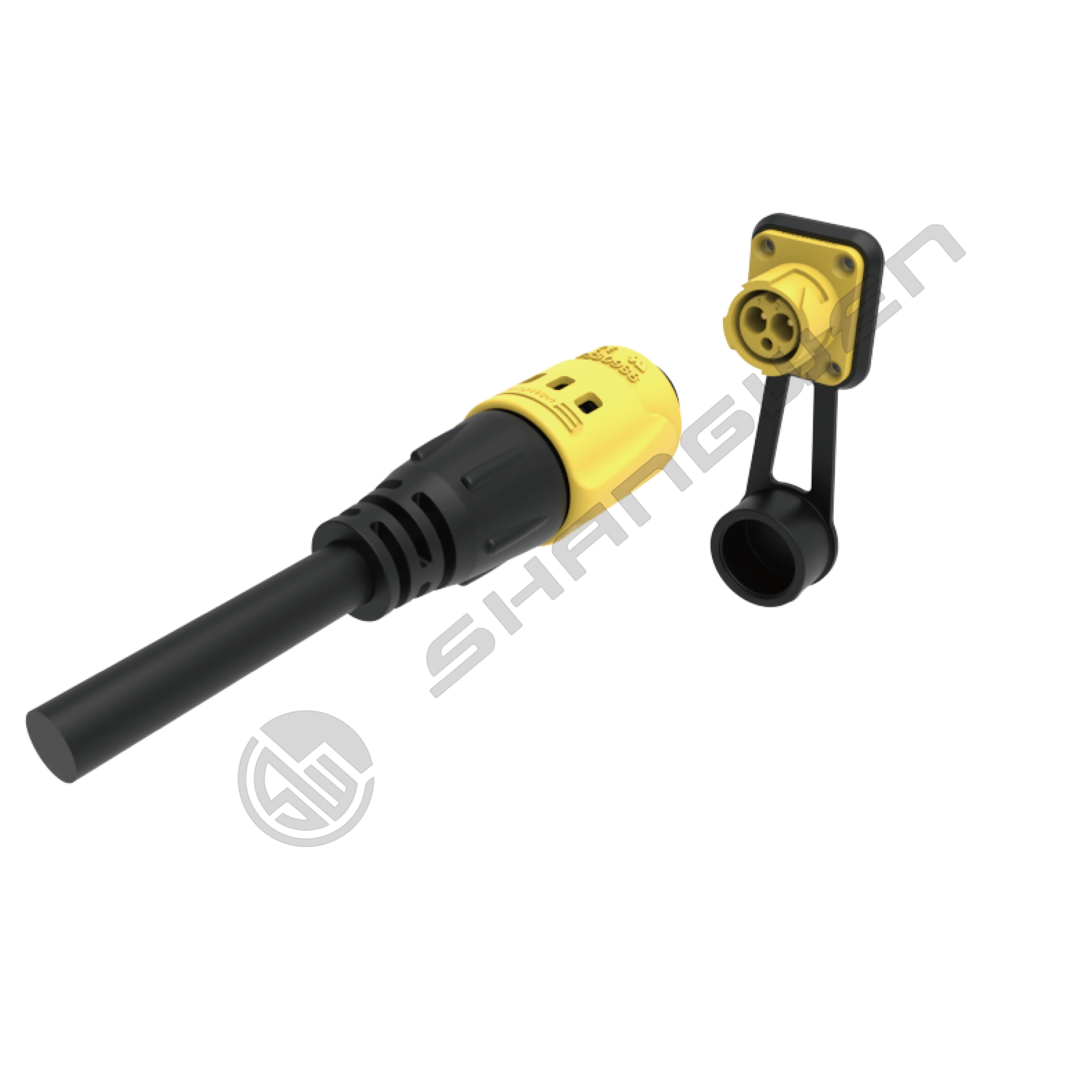

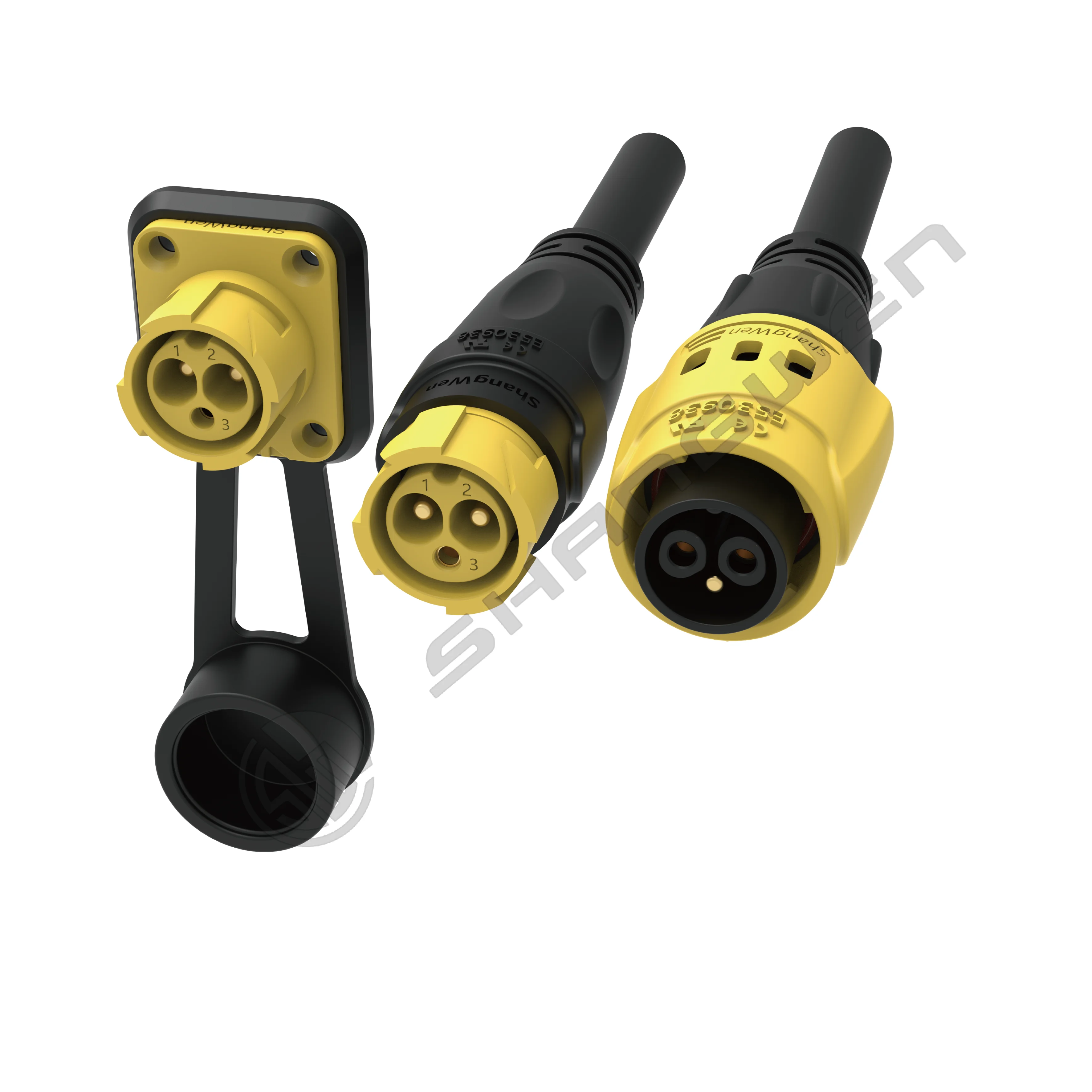

SW19 Self-locking series-3 Pin connector
M19 series is an industrial connector, which includes male plug, female plug and male socket.
There are two locking methods:
1. Push-pull self-locking connection
2. Plastic screw connection, both locking design is very reliable.
The material selection of the inner core uses gold-plated pin, which is conducive to the stable passage of the current. A variety of cores can be selected, making its application field more extensive.
The cable skin is molded by a plastic wrap mold. All materials comply with environmental RoHS standards, and passed CE,UL,FCC and other multinational certification. Male coordinate with waterproof apron, the waterproof grade of the connector up to IP67.
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
Model : （output）
SWM19-3TBS-E3
SWM19-3TYS-E3
SWM19-3TLS-E3

☑Quick, simple self locking system
☑Connect reliably
☑Small size of product
☑Multiple cores -2,3,4,5,6,9,3+9 pin support multiple application scenarios
☑Waterproof rating IP65
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
1.Electrical parameters
Contacts NO.
3 pin
Rated current
20A
Rated voltage
250V AC
Withstand voltage
1500V
Insulation resistance
≥100mΩ
Contact resistance
≤10mΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
Φ4.5mm-Φ11mm
Cable size
0.3mm²-2.5mm²(22AWG-12AWG)
Type of terminals
Screw terminal and soldering terminal available
3.Material and environmental parameters
Shell
High performance engineering plastics
Contacts
Copper alloy
Contact diameter
Φ2.4mm
Protection degree
IP65
Flame-retardant grade
UL94-V0
Temperature range
-40℃~105℃

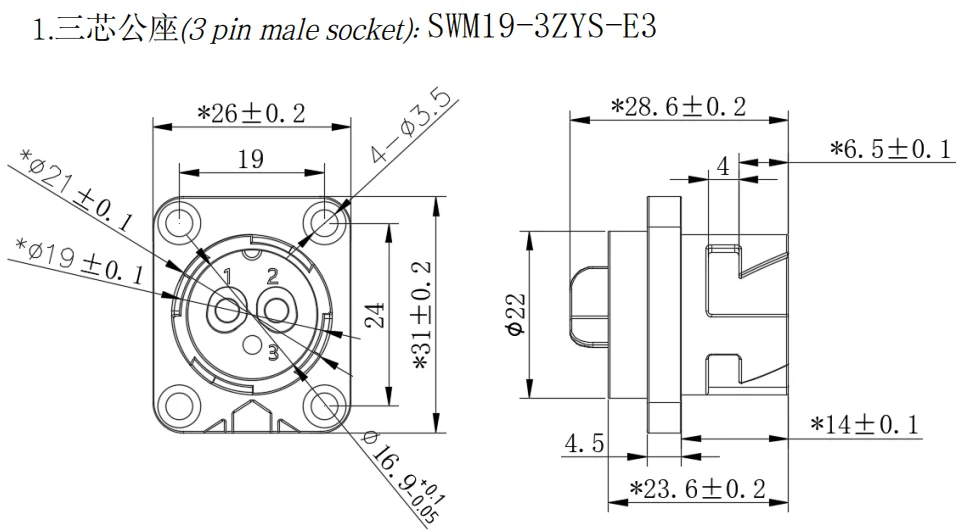

4.Size reference (unit /mm)
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
Our power connector is a high-performance product designed to meet the needs of modern industrial and outdoor equipment, featuring
the following outstanding characteristics:
1. IP65 waterproof rating: Exceptional waterproof and dustproof performance ensures stable operation in outdoor or humid environments.
2. Supports 20A current transmission: High current capacity meets the power requirements of heavy-duty equipment.
3. Self-locking structure: Equipped with an intelligent self-locking design to ensure a secure connection and prevent accidental disconnection, enhancing safety.
4. Easy assembly: Optimized structure design for easy installation and removal, significantly improving work efficiency.
5. Multiple certifications: Certified by multiple countries, meeting international standards to ensure quality and safety.
6. Durable and robust: Built with high-quality materials, offering excellent corrosion resistance and impact strength, suitable for various challenging environments.
This power connector is widely used in industrial automation, heavy-duty equipment, and outdoor applications, providing a
reliable, stable, and efficient power connection solution
Application area
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
Company Information
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
Patent & Certification
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
Exhibition activities
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
Packaging reference
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
Payment and logistics
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
FAQ
IP65 Aviation Plug Quick Plug Output Push-pull Self-locking Yellow Industrial Male Plug Power M19 Push Lock 3 Pin Connector
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
