Mini 5-Pin XLR Male Audio Connector IP40 Indoor Shell with Gold Contacts Black Microphone Audio Cable Connector Plug

Name: Mini 5Pin XLR Male Audio Connector IP40 Indoor Shell with Gold Contacts Black Microphone Audio Cable Connector Plug
Brand: SHANGWEN
Price: 0.95 USD

Quality Mini 5-Pin XLR Male Audio Connector IP40 Indoor Shell with Gold Contacts Black Microphone Audio Cable Connector Plug for sale

Application : Audio & Video

Rated Current : 7.5a

Model Number : SWM5X-3ZBN-KN

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male

IP Level : IP40

Type : XLR connector

Industrial electronics : accessories

MOQ : 10 pieces

Price : $0.95-1.28 / piece

Contact Now

Products Description

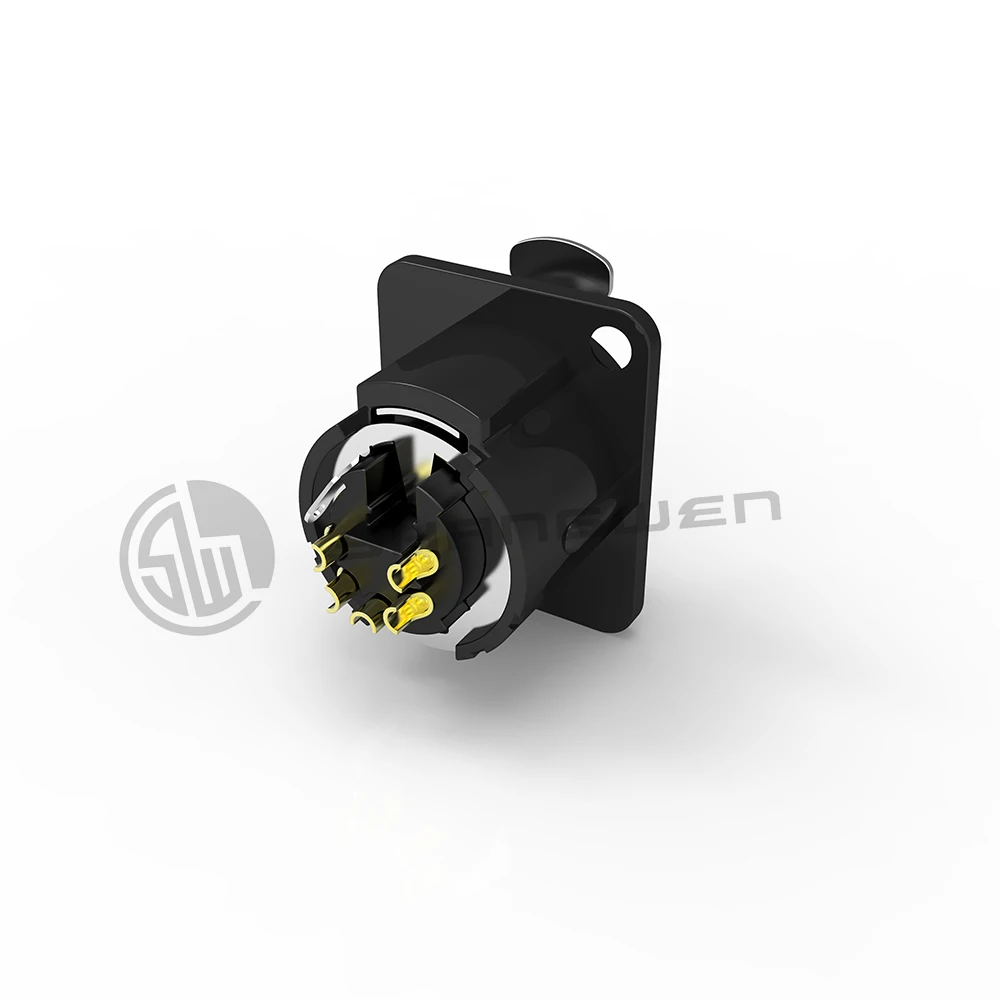

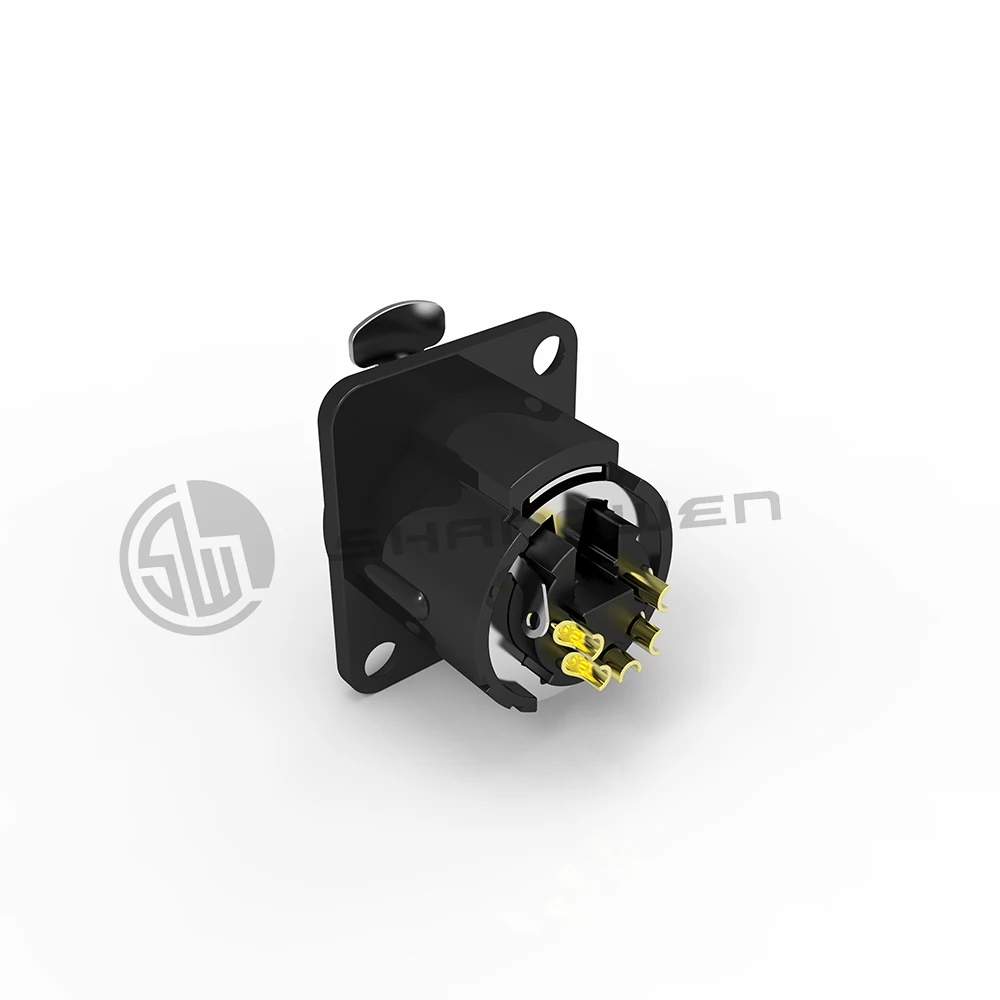

XLR connector-5 pin male socket

Mini 5-Pin XLR Male Audio Connector IP40 Indoor Shell with Gold Contacts Black Microphone Audio Cable Connector Plug

Model：SWM5X-3ZBN-KN (Black)

☑Standard D mounting dimensions, fully matched to existing installation
☑Light size, can be installed front and back
☑Zinc alloy shell, contact point gold-plated
☑Can solve the fast connection requirement of input and output of DMX signal in outdoor conditions in the lighting industry
☑Protection class IP40

1.Product parameters

Connection Type	XLR
Gender	male

2.Electrical parameters

Capacitance between contacts	≤7pF
Contact resistance	≤5mΩ
Dielectric strength	1.5kV DC
Insulation resistance	> 1.5GΩ (initial)
Rated current per contact	7.5A
Rated voltage	<50V

3.Mechanical parameters

Insertion force	≤ 40N
Withdrawal force	≤ 40N
Service life	＞1000 mating cycles
Chassis shape	D type

4.Material and environmental parameters

Contacts	Cu alloy
Contact plating	Au
Insert	Polyamide (PA 66 +30 % GF)
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Cr black
Solder ability	Complies with IEC 68-2-20
Flame-retardant grade	UL 94 HB
Protection class	IP40
Temperature range	-20℃to +80℃

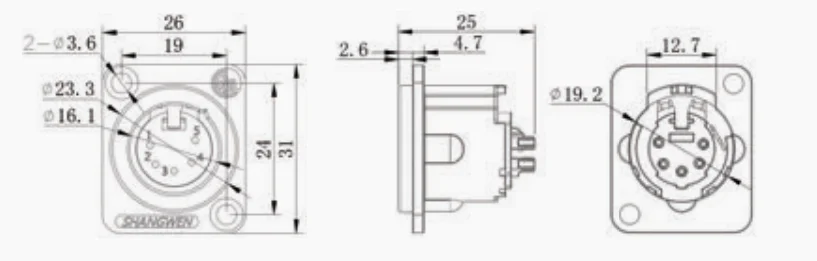

5.Size reference (unit /mm)

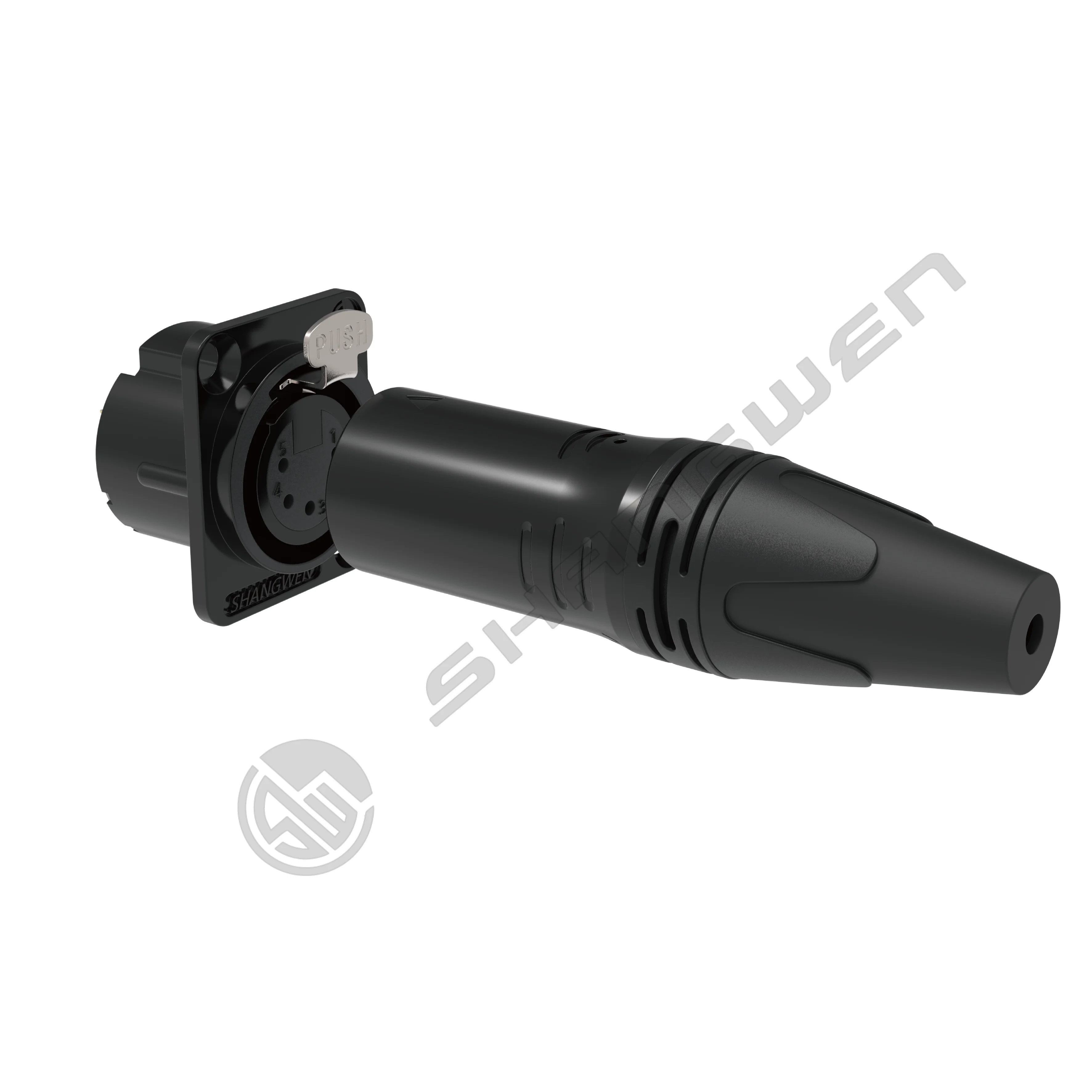

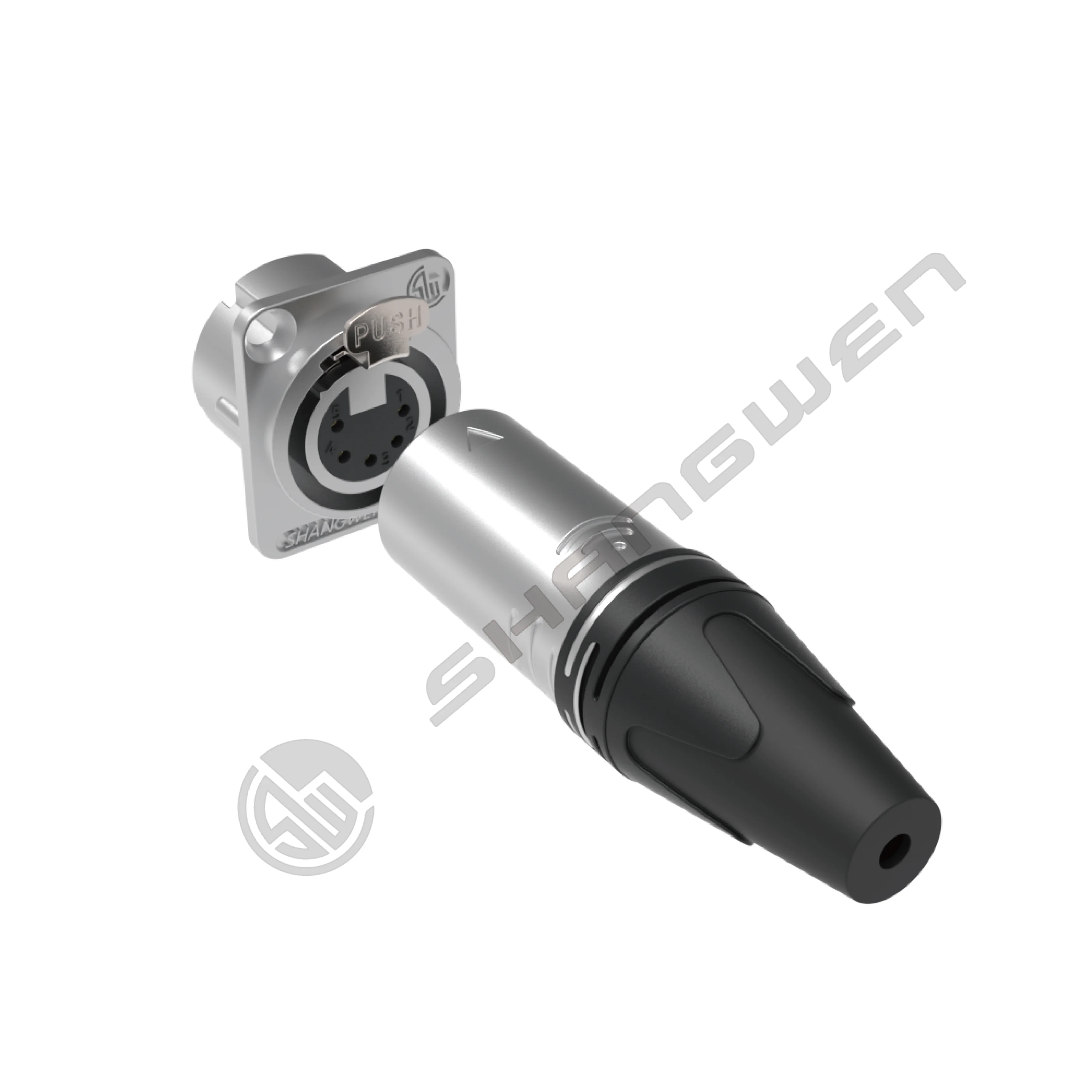

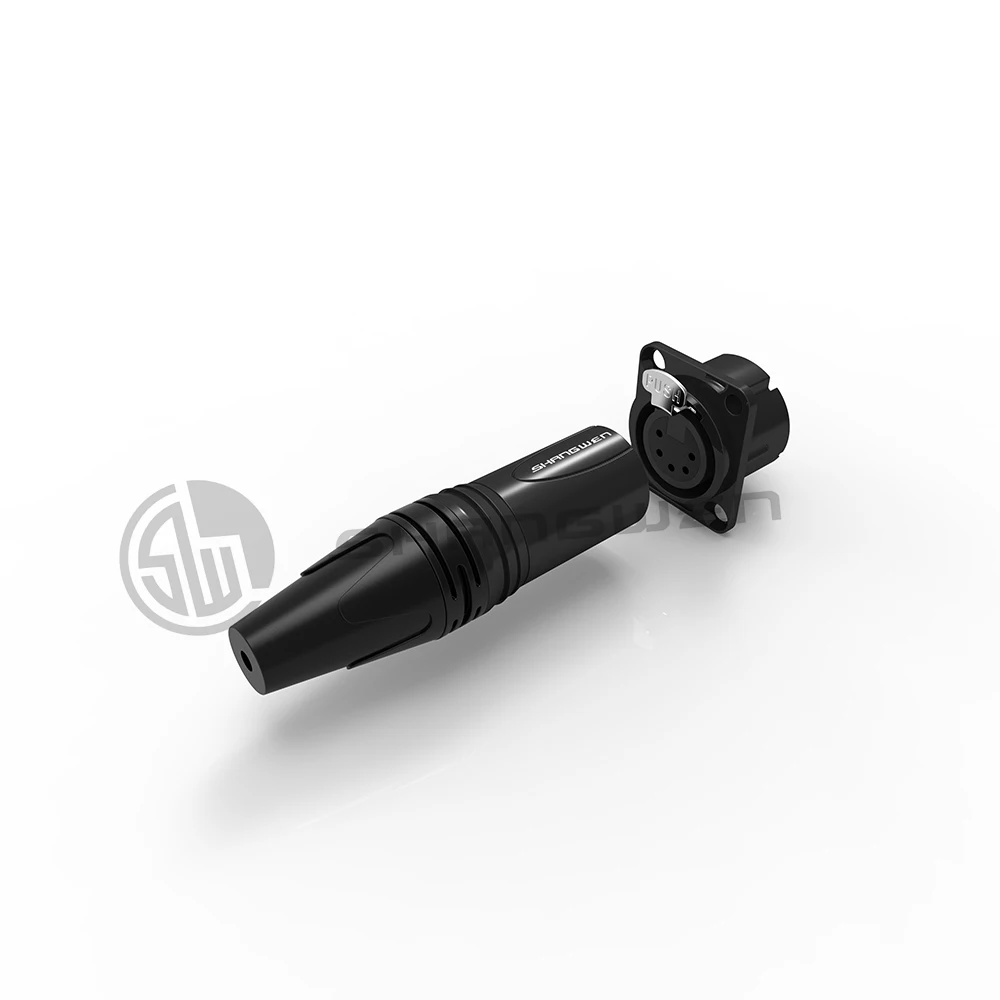

6.Assembly reference

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
