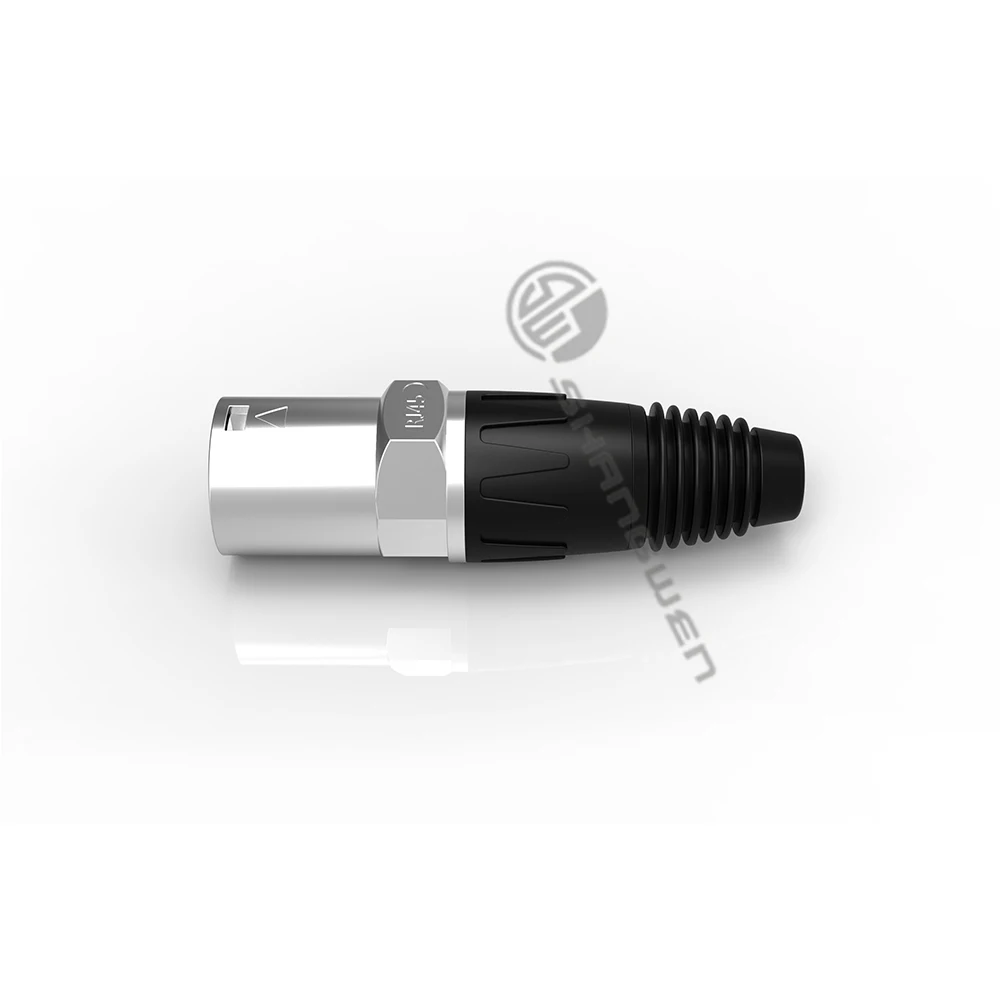

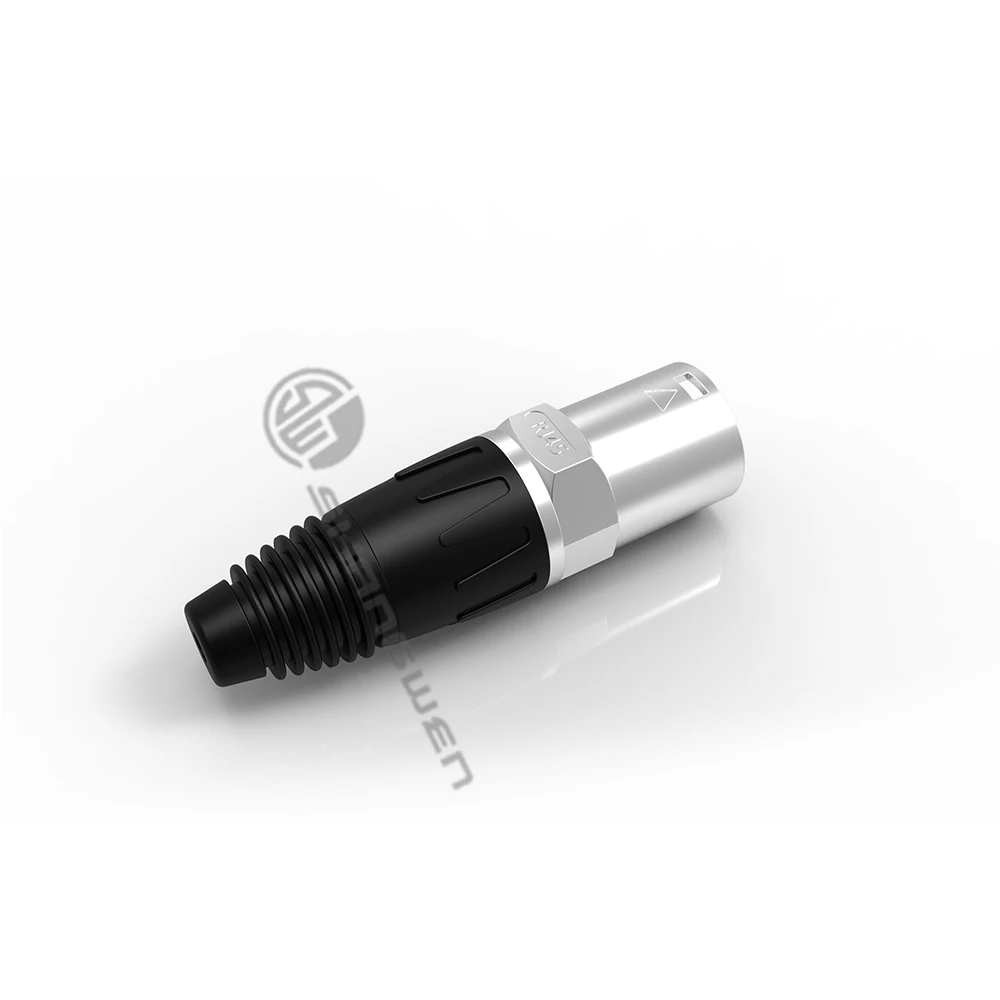

IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors

Name: IP44 Indoor Rj45 Connectors 8Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors
Brand: SHANGWEN
Price: 0.90 USD

Quality IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors for sale

Place of Origin : Guangdong, China

IP level : IP44

Brand Name : SHANGWEN

Model Number : SW8MC-A-2N

Type : RJ45 plug

Application : Ethernet

Gender : Male

Industrial electronics : accessories

MOQ : 10 pieces

Price : $0.90-2.90 / piece

Contact Now

Products Description

Signal connector series-RJ45 connector

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.

IP44 Indoor Rj45 Connectors 8-Pin Male Female Chassis Connectors Zinc Shell for Harsh Environments RJ45 Connectors

Model：SW8MC-A-2Nindoor use）

☑This RJ45 system is suitable for very demanding environments
☑This cable jacket can be matched with most RJ45
☑Cable jacket does not include crystal head
☑Wire diameter range: 5-7mm
☑Rugged die-cast housing and unique line clamp lock card
☑In many commercial applications, protecting Ethernet connections, this design protects components in RJ45 standard connectors

1. Mechanical parameters

Service life	＞1000 mating cycles
Insertion force	≤20 N
Wiring	5-7mm
Locking device	latch lock

2. Material and environmental parameters

Boot	Polyamide
Shell	Zinc diecast
Shell plating	Black coating
Temperature range	-30℃to +80℃

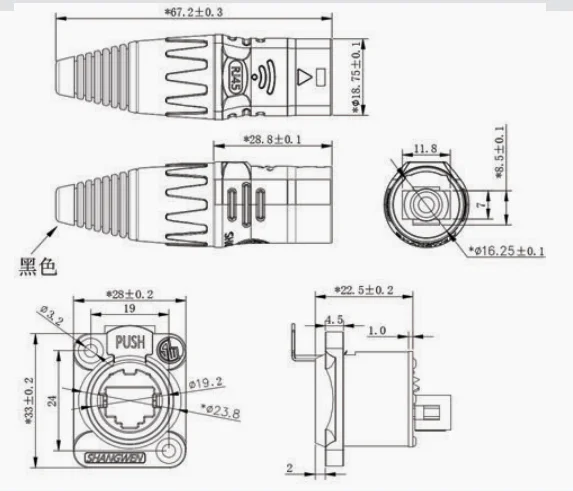

3. Size reference (unit /mm)

4. Internal structure reference

5. Installation instructions with RJ45 socket
