Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable

Product Categories
Shenzhen Shangwen Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable

Conductor Material : Copper

Insulation Material : PVC

Model Number : power connector cable

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Application : Industrial

Jacket : Rubber

Type : Low Voltage

Industrial electronics : Commercial display

MOQ : 10 pieces

Price : $4.71-6.35 / piece

Contact Now

Products Description

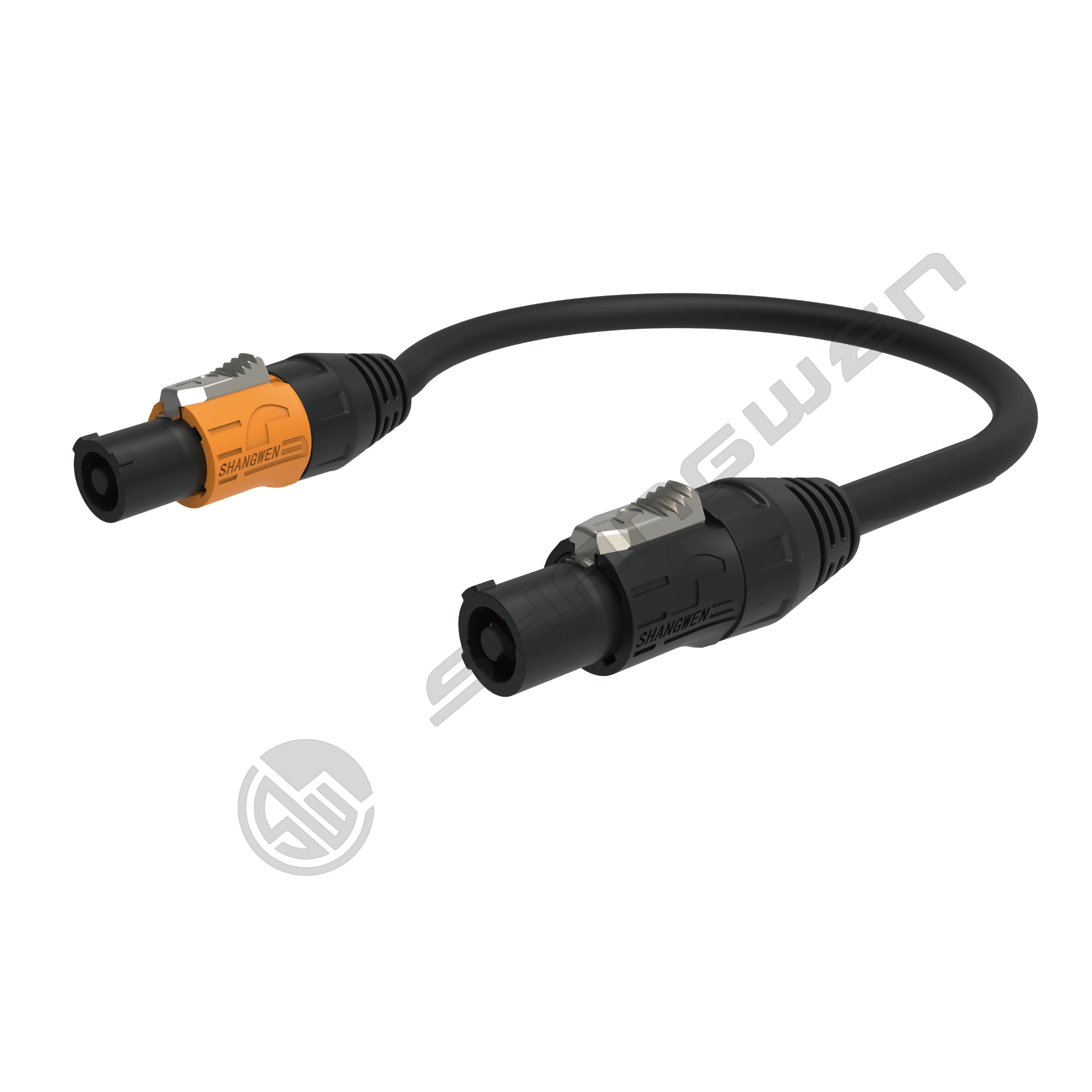

3*2.5mm/3*1.5mm Powercon cable
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Outdoor power connector cable
☑Lockable 3 pole single phase equipment (AC) connector
☑High current capacity, rated at 20 A / 250 V ac
☑Colour coded for easy identification, powerCON offers power-in and power-out (grey) versions with different keying to avoid the possibility of intermating
☑Fast and easy locking system ☑Extremely robust and reliable ☑Excellent cable retention ☑UL, cUL recognized components (file no. E 135070) VDE certified (Reg. No. 6360) ☑New latch design for easier handling and secure locking

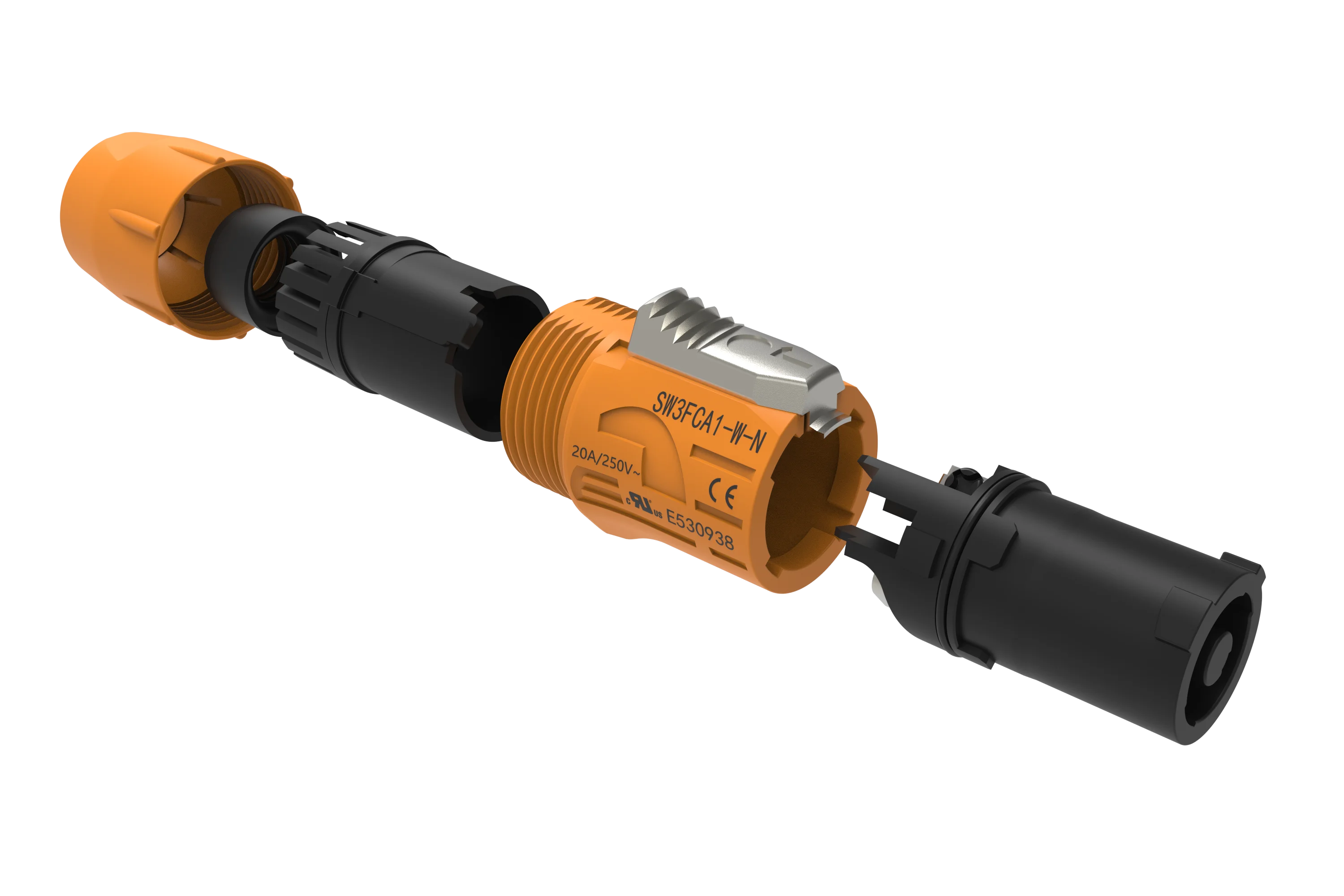

Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
1.Product parameters
Product
Powercon cable
Connection Type
Screw
Gender
Female
2.Electrical parameters
Contact resistance
≤ 3 mΩ
Dielectric strength
4 kVdc
Insulation resistance
> 0.1 GΩ (IEC 68-2-30)
Rated current per contact
20 A rms
Rated voltage
250 V ac
3.Mechanical parameters
Service life
＞1000 mating cycles
Locking device
Quick lock
4.Material and environmental parameters
Contact plating
2 µm Ag
Lock material
Steel Ck67
Shell
Polyamide(PA 6.6 30 % GR)
Contact
Bronze (CuNi1Si0.2)
Flame-retardant grade
UL 94 V-0
Protection class
IP65(After connecting)
Safety requirements
EN/IEC 61984
Solderability
Complies with IEC 68-2-20
Temperature range
-30℃to +80℃
Application area
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Company Information
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Patent & Certification
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Exhibition activities
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Packaging reference
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
Payment and logistics
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
FAQ
Outdoor IP65 Waterproof Powercon Connector Orange Black 3-Pole Male Plug Female Chassis Socket 20A 250V for LED Power Cable
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
