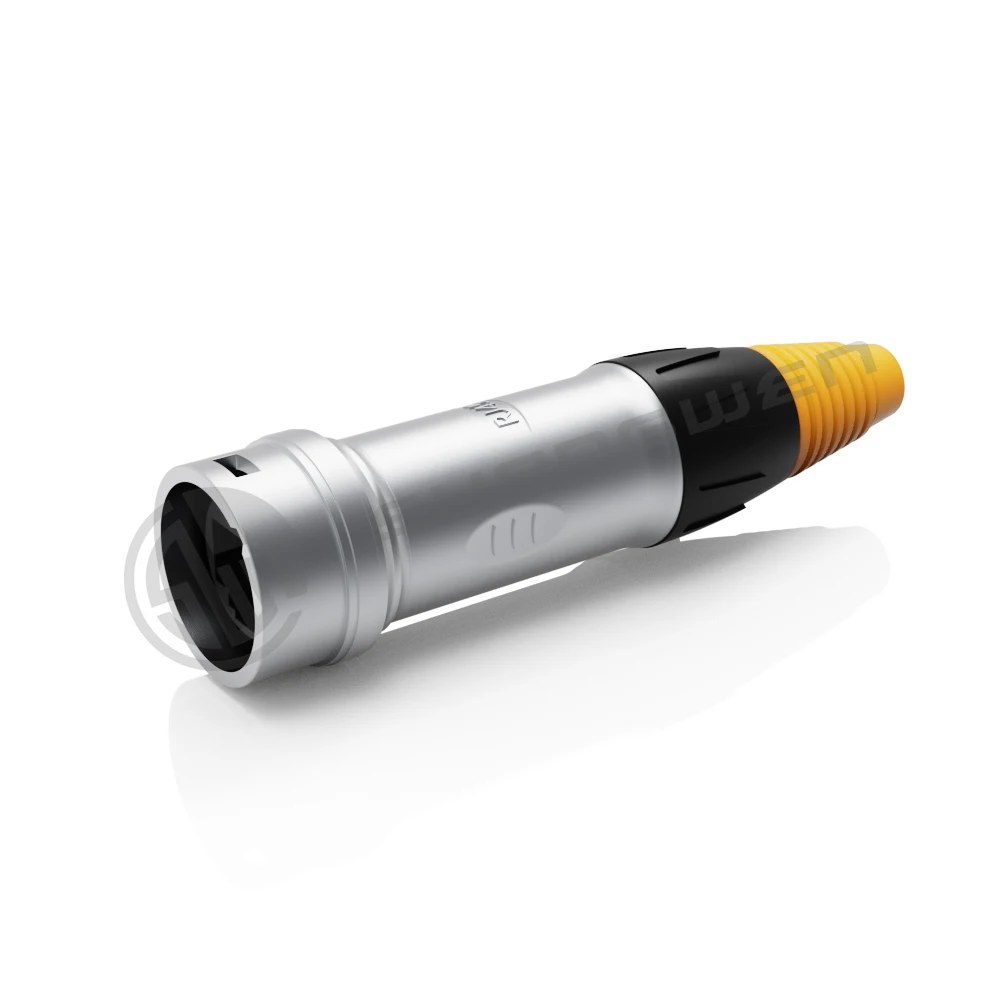

Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector

Name: Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector
Brand: SHANGWEN
Price: 2.50 USD

Application : Ethernet

Model Number : SW8FC-03-N

Brand Name : SHANGWEN

Place of Origin : Guangdong, China

Gender : Male

IP Level : ip67,IP65

Type : RJ45

Industrial electronics : accessories

MOQ : 10 pieces

Price : $2.50-3.90 / piece

Contact Now

Products Description

Signal connector series-RJ45 connector（Metal button upgrade model）

Based on a safety lock on the basis of RJ45 connection, is widely used in professional audio, video, lighting and other network equipment.This product design comes from rocket, the appearance is fashionable and beautiful. The whole installation can be realized with the RJ45 base, especially for the thickness of the mounting panel without any limitation.

Shenzhen New Lock Design Outdoor Metal Button Ip65 Waterproof Male Rj45 Signal Connector

Model：SW8FC-03-N（Indoor use）

☑This RJ45 system is suitable for very harsh environments
☑The new lock design really realizes fast plug and pull, one hand operation, one action can unlock. Saves time compared with
traditional waterproof signal products.
☑The lock is designed on the plug, and the internal design is a strong spring. Press the button to unlock it, even if the spring fails, it can be unlocked, which is more stable than traditional products.
☑In many commercial applications, protected RJ45 connections are designed to prevent damage to fragile components in the RJ45
standard connectors
☑It can reach IP65/IP67 protection level in coordination state

1. Mechanical parameters

Service life	＞1000 mating cycles
Insertion force	≤50 N
Wiring	5-7mm
Locking device	latch lock

2. Material and environmental parameters

Boot	Polyamide
Shell	Zinc diecast
Shell plating	Pearl Cr
Strain relief	Zinc diecast
Temperature range	-30℃to +80℃

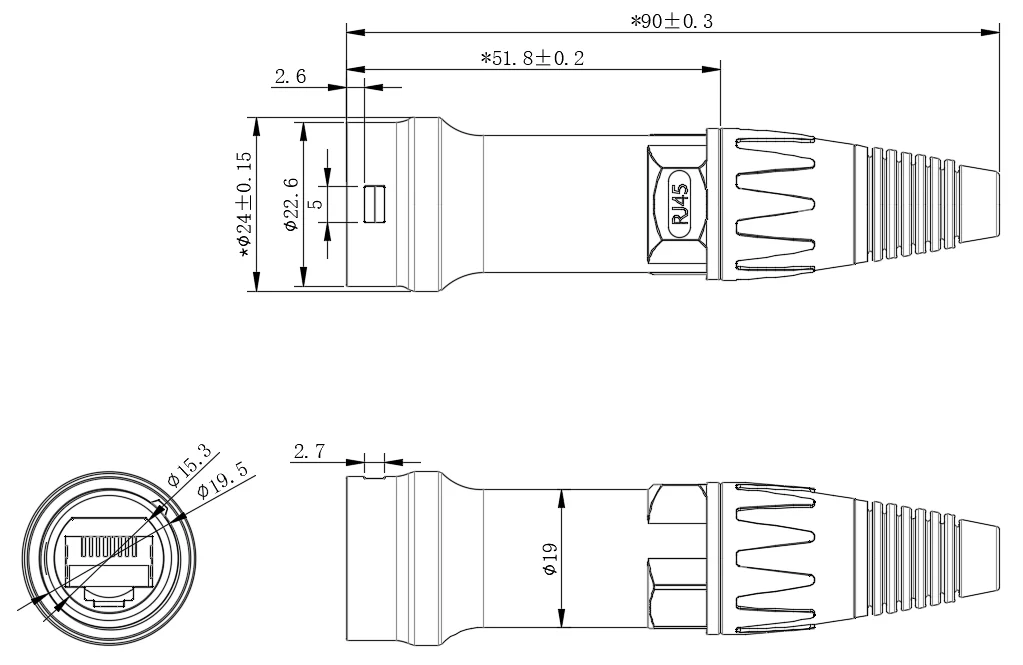

3. Size reference (unit /mm)

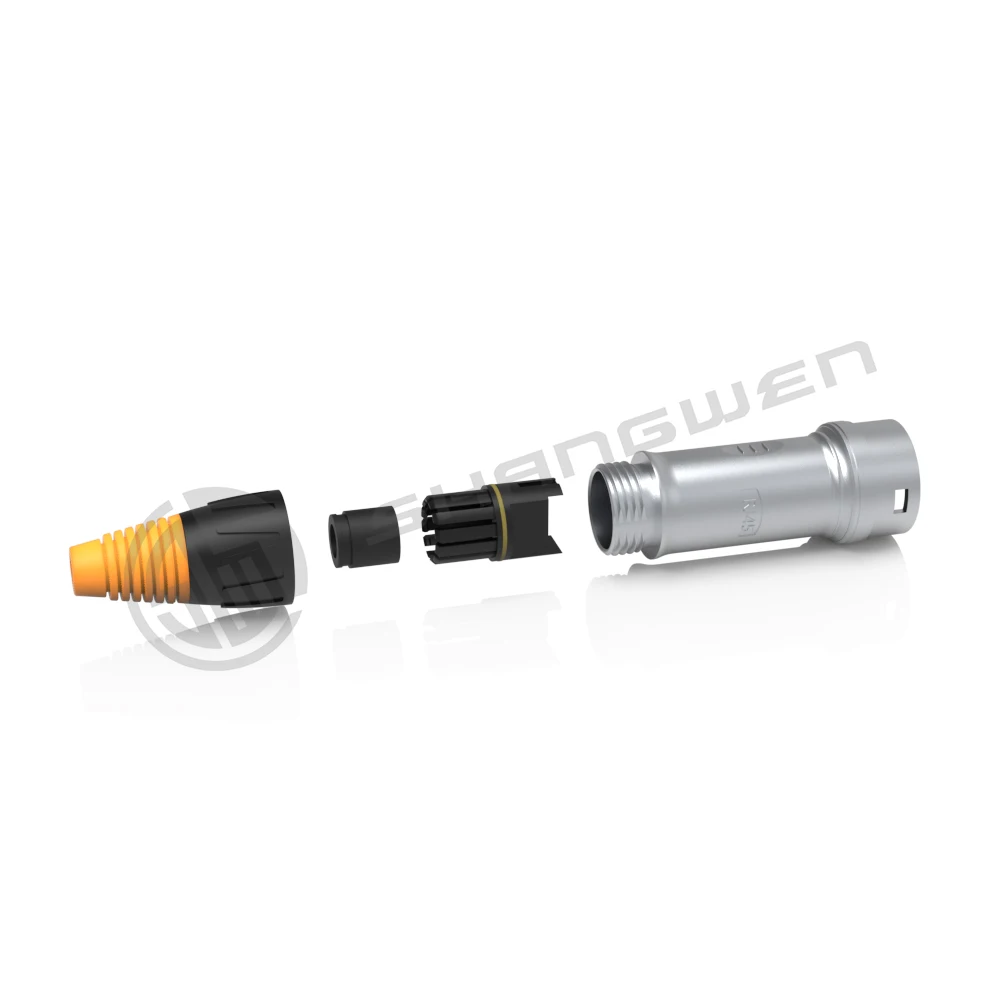

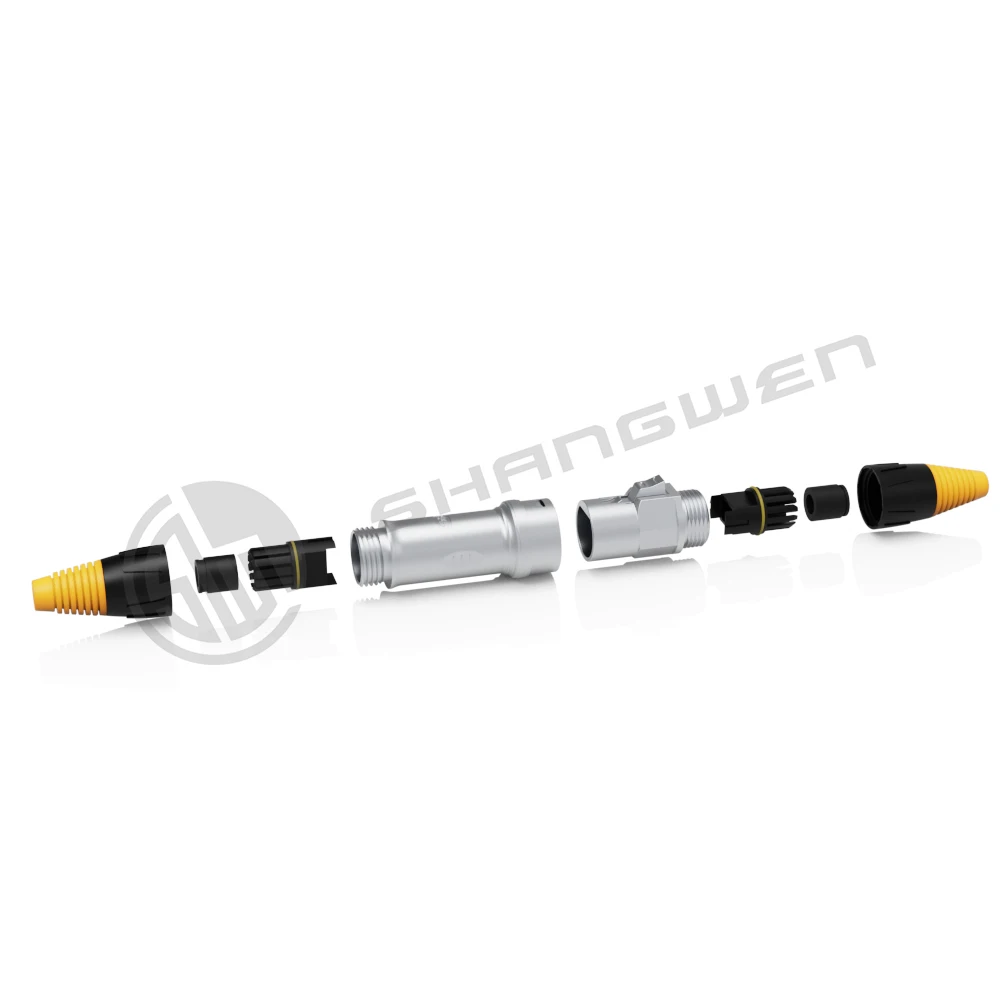

4. Internal structure reference

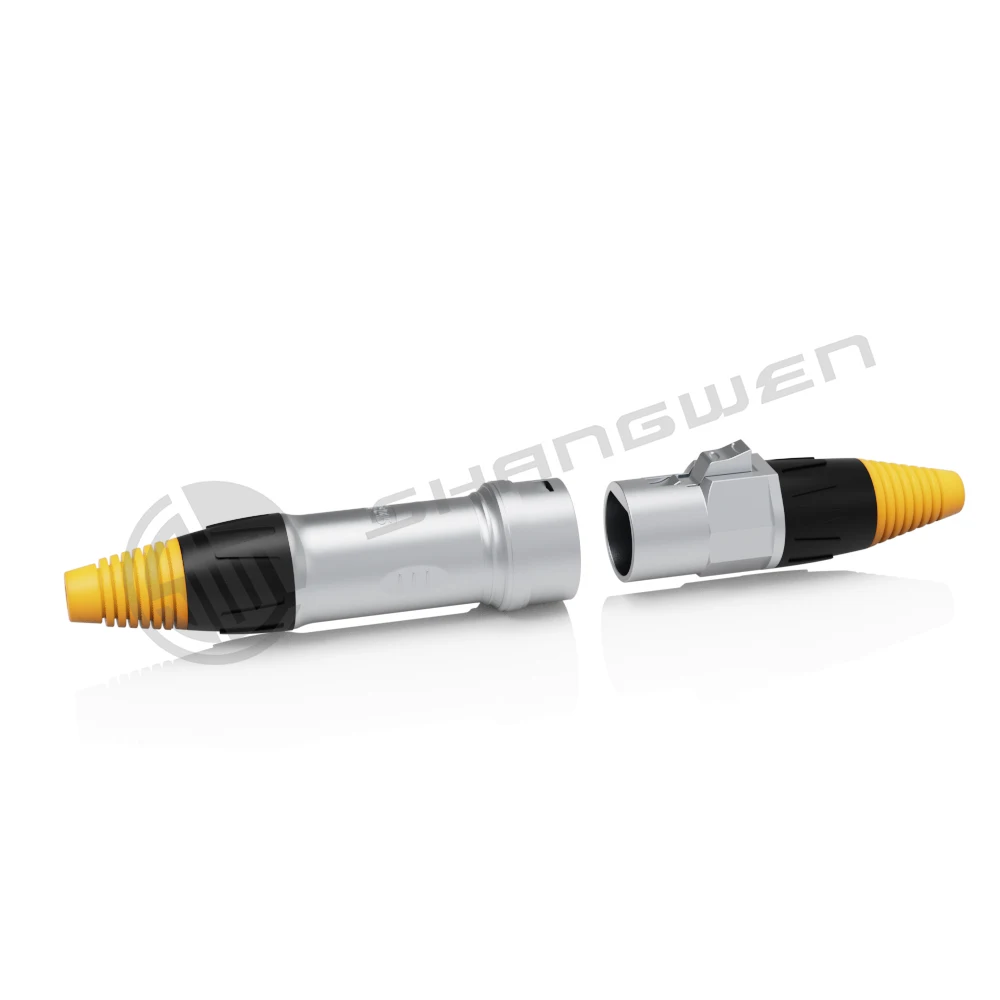

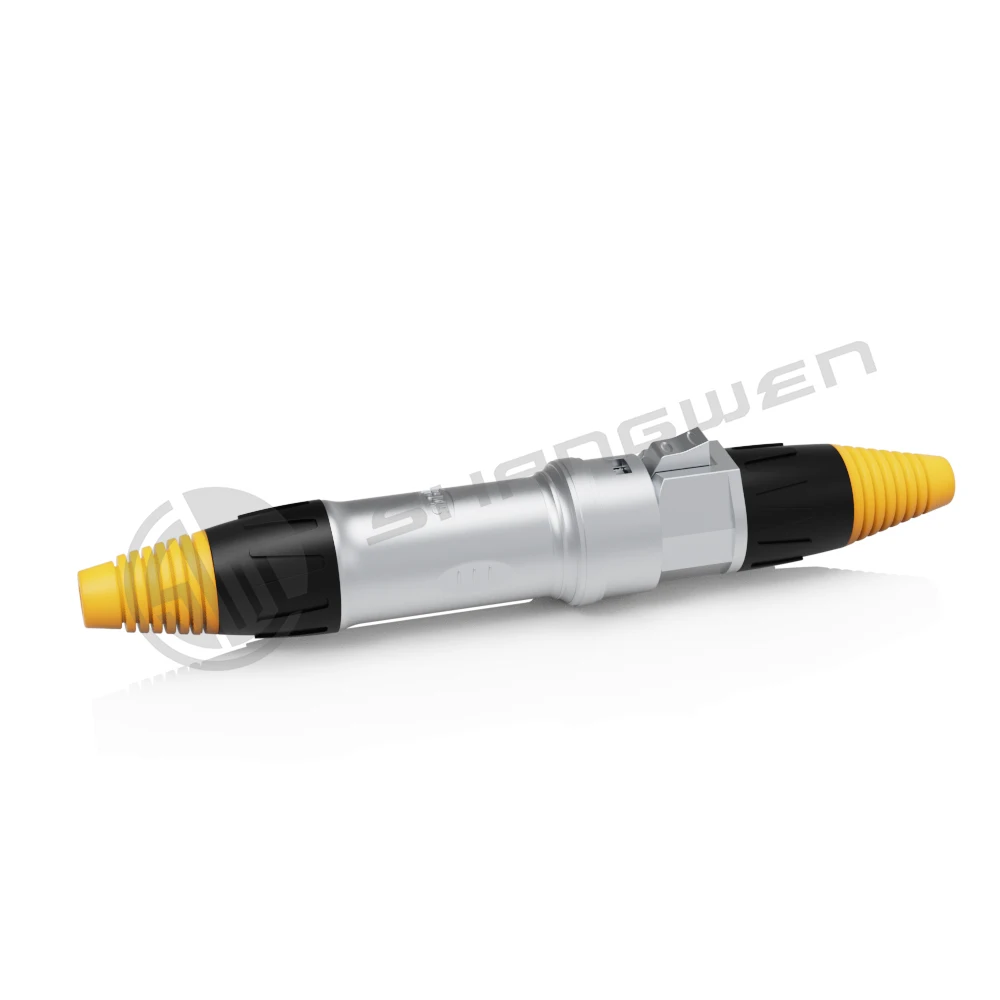

5. Installation instructions with RJ45 socket

Application area

Company Information

Patent & Certification

Exhibition activities

Packaging reference

Payment and logistics

FAQ

1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
